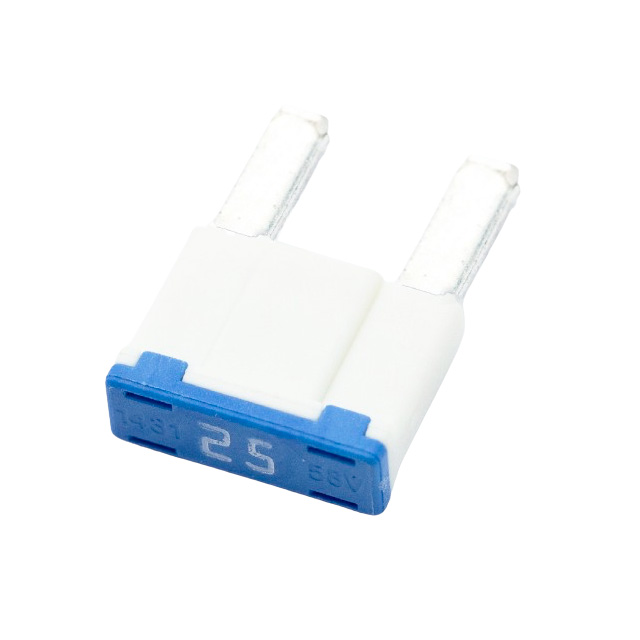

ANM58-25A

Active

OptiFuse

FUSE AUTO 25A 58VDC BLADE MINI

Search across all available documentation for this part.

Active

OptiFuse

FUSE AUTO 25A 58VDC BLADE MINI

Technical Specifications

Parameters and characteristics for this part

Specification	ANM58-25A

Breaking Capacity @ Rated Voltage	1 kA
Color	Clear
Current Rating (Amps)	25 A
Fuse Type	Automotive
Mounting Type	Requires Holder
Package / Case	Blade, Miniature
Response Time	Fast Blow
Size / Dimension [x]	11.8 mm
Size / Dimension [x]	0.465 in
Size / Dimension [y]	4 mm
Size / Dimension [y]	0.157 in
Size / Dimension [z]	0.354 in
Size / Dimension [z]	9 mm
Voltage Rating - DC	58 VDC

Part	Voltage Rating - DC	Package / Case	Mounting Type	Response Time	Breaking Capacity @ Rated Voltage	Fuse Type	Color	Current Rating (Amps)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]
OptiFuse ANM58-4A	58 VDC	Blade Miniature	Requires Holder	Fast Blow	1 kA	Automotive	Pink	4 A	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM58-25A	58 VDC	Blade Miniature	Requires Holder	Fast Blow	1 kA	Automotive	Clear	25 A	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM58-1A	58 VDC	Blade Miniature	Requires Holder	Fast Blow	1 kA	Automotive	Black	1 A	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM58-2A	58 VDC	Blade Miniature	Requires Holder	Fast Blow	1 kA	Automotive	Gray	2 A	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in
OptiFuse ANM58-5A	58 VDC	Blade Miniature	Requires Holder	Fast Blow	1 kA	Automotive	Tan	5 A	0.354 in	11.8 mm	4 mm	0.157 in	9 mm	0.465 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

25 A AC 58 V DC Fuse Automotive Requires Holder Blade, Miniature
