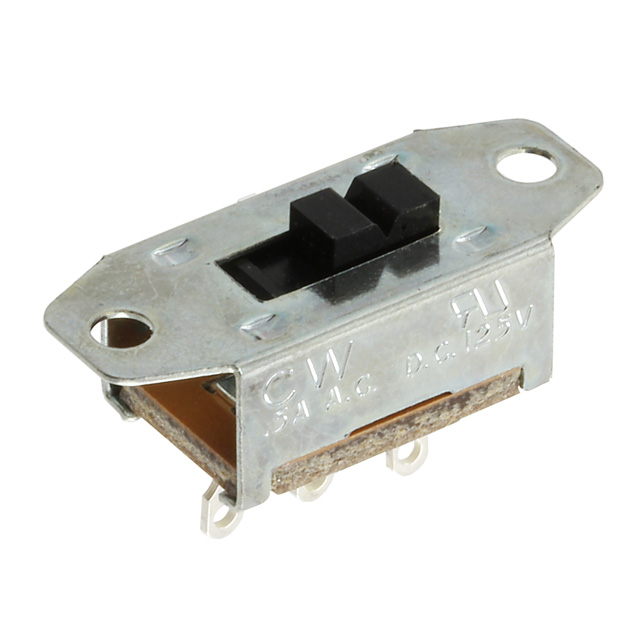

GF-124-0198

Active

CW Industries

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

GF-124-0198

Active

CW Industries

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GF-124-0198

Actuator Length [x]	1.27 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Screwdriver Slot
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	500 mA
Electrical Life	6000 Cycles
Features	No Marking
Mechanical Life	10000 Steps
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On (Line Voltage Selector)
Switch Travel	3.61 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

GF-124 Series

Part	Actuator Type	Termination Style	Voltage Rating - AC	Contact Finish	Actuator Material	Switch Function	Electrical Life	Mechanical Life	Circuit	Contact Material	Voltage Rating - DC	Current Rating (Amps)	Contact Timing	Actuator Length [x]	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features
CW Industries GF-124-0204	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	11.5 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0013	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0015	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0196	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0215	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	11.5 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0191	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0088	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0198	Screwdriver Slot	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On (Line Voltage Selector)	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	1.27 mm	3.61 mm	104 °C	-10 °C		No Marking
CW Industries GF-124-0216	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	3 A 500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0202	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	3 A 500 mA	Not Specified	8.33 mm	3.61 mm	104 °C	-10 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.83
		10	$ 0.80
		25	$ 0.75
		100	$ 0.65
		250	$ 0.59
		500	$ 0.56

Description

General part information

GF-124 Series

Slide Switch SPDT Panel Mount

Documents

Technical documentation and resources

No documents available
