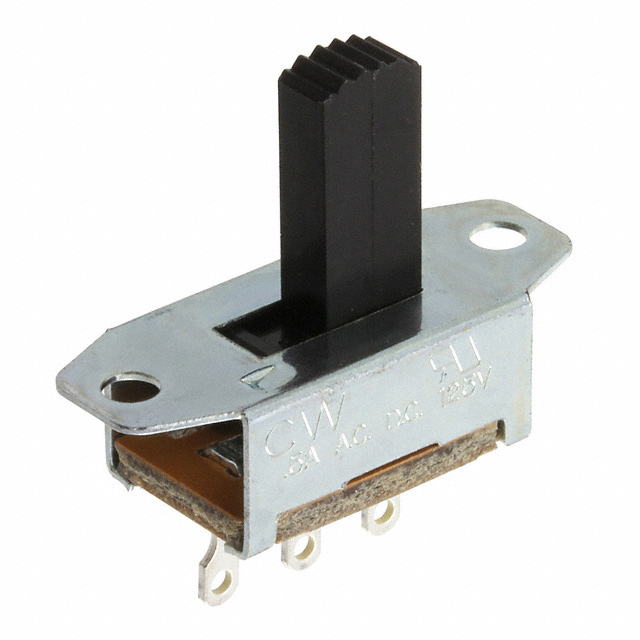

GF-124-0204

Active

CW Industries

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

GF-124-0204

Active

CW Industries

SWITCH SLIDE SPDT 500MA 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	GF-124-0204

Actuator Length [x]	11.5 mm
Actuator Material	Polyamide (PA66), Nylon 6/6
Actuator Type	Standard
Circuit	SPDT
Contact Finish	Silver
Contact Material	Copper
Contact Timing	Not Specified
Current Rating (Amps)	500 mA
Electrical Life	6000 Cycles
Mechanical Life	10000 Steps
Operating Temperature [Max]	104 °C
Operating Temperature [Min]	-10 °C
Switch Function	On-On
Switch Travel	3.61 mm
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	125 VDC

GF-124 Series

Part	Actuator Type	Termination Style	Voltage Rating - AC	Contact Finish	Actuator Material	Switch Function	Electrical Life	Mechanical Life	Circuit	Contact Material	Voltage Rating - DC	Current Rating (Amps)	Contact Timing	Actuator Length [x]	Switch Travel	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features
CW Industries GF-124-0204	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	11.5 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0013	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0015	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0196	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0215	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	11.5 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0191	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0088	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C
CW Industries GF-124-0198	Screwdriver Slot	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On (Line Voltage Selector)	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	500 mA	Not Specified	1.27 mm	3.61 mm	104 °C	-10 °C		No Marking
CW Industries GF-124-0216	Standard	PC Pin	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	3 A 500 mA	Not Specified	5.08 mm	3.61 mm	104 °C	-10 °C	Through Hole
CW Industries GF-124-0202	Standard	Solder Lug	125 V	Silver	Nylon 6/6 Polyamide (PA66)	On-On	6000 Cycles	10000 Steps	SPDT	Copper	125 VDC	3 A 500 mA	Not Specified	8.33 mm	3.61 mm	104 °C	-10 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.16
		10	$ 1.11
		25	$ 1.04
		100	$ 0.90
		250	$ 0.82
		500	$ 0.76
		1000	$ 0.71
		2500	$ 0.64
		5000	$ 0.60

Description

General part information

GF-124 Series

Slide Switch SPDT Panel Mount
