17-030A
ObsoleteTE Connectivity Measurement Specialties

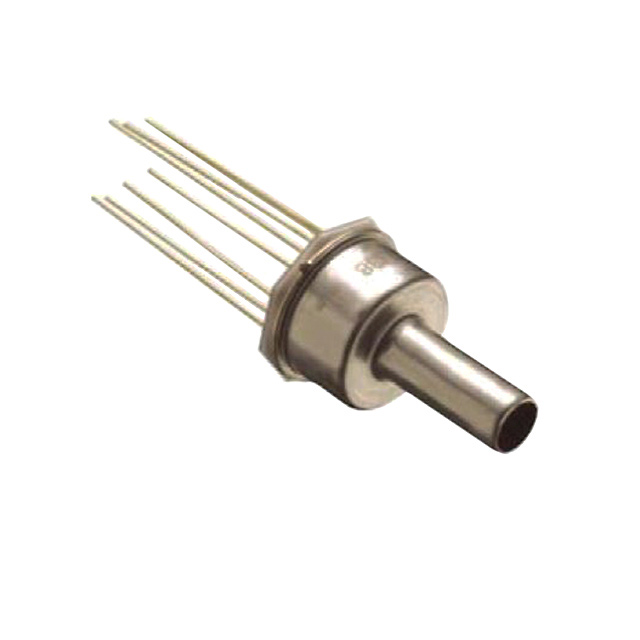

SENSOR 30PSIA 0.19" 0.1V TO8
Deep-Dive with AI
Search across all available documentation for this part.
17-030A
ObsoleteTE Connectivity Measurement Specialties
SENSOR 30PSIA 0.19" 0.1V TO8
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 17-030A |
|---|---|
| Accuracy | 0.1 % |
| Applications | Board Mount |
| Features | Temperature Compensated |
| Maximum Pressure [Max] | 90 PSI |
| Maximum Pressure [Max] | 620.53 kPa |
| Mounting Type | Through Hole |
| Operating Pressure | 206.84 kPa |
| Operating Pressure | 30 PSI |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Output [Max] | 100 mV |
| Output [Min] | 0 mV |
| Output Type | Wheatstone Bridge |
| Package / Case | TO-8 Style |
| Package / Case | 12 |
| Port Size | 4.826 mm, 4.78 mm |
| Port Style | Barbless |
| Supplier Device Package | TO-8 |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 87.35 | |
| 10 | $ 73.56 | |||
| 25 | $ 68.96 | |||
| 100 | $ 66.66 | |||
Description
General part information
17-030 Series
Pressure Sensor 30PSI (206.84kPa) Absolute Male - 0.19" (4.78mm) Tube 0 mV ~ 100 mV TO-8 Style, 12 Leads
