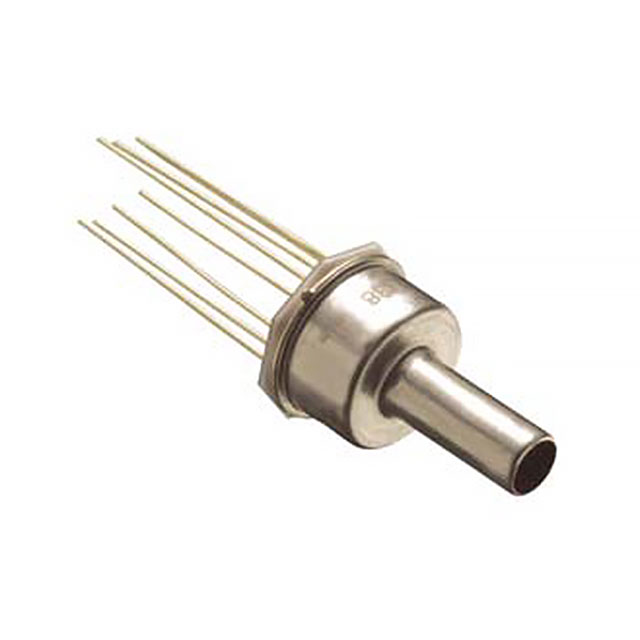

17-030G

Obsolete

TE Connectivity Measurement Specialties

SENSOR 30PSIG 0.19" 0.1V TO8

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 30PSIG 0.19" 0.1V TO8

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Pressure	Operating Pressure	Accuracy	Package / Case	Package / Case	Output [Min]	Output [Max]	Maximum Pressure [Max]	Maximum Pressure [Max]	Features	Port Style	Supplier Device Package	Termination Style	Applications	Port Size	Pressure Type
TE Connectivity Measurement Specialties 17-030G	Through Hole	Wheatstone Bridge	125 °C	-40 °C	206.84 kPa	30 PSI	0.1 %	TO-8 Style	12	0 mV	100 mV	90 PSI	620.53 kPa	Temperature Compensated	Barbless	TO-8	PC Pin	Board Mount	4.78 mm 4.826 mm	Vented Gauge
TE Connectivity Measurement Specialties 17-030A	Through Hole	Wheatstone Bridge	125 °C	-40 °C	206.84 kPa	30 PSI	0.1 %	TO-8 Style	12	0 mV	100 mV	90 PSI	620.53 kPa	Temperature Compensated	Barbless	TO-8	PC Pin	Board Mount	4.78 mm 4.826 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 30PSI (206.84kPa) Vented Gauge Male - 0.19" (4.78mm) Tube 0 mV ~ 100 mV TO-8 Style, 12 Leads

Technical documentation and resources

No documents available
