SSI-LXH600ID-150

Active

Lumex Opto/Components Inc.

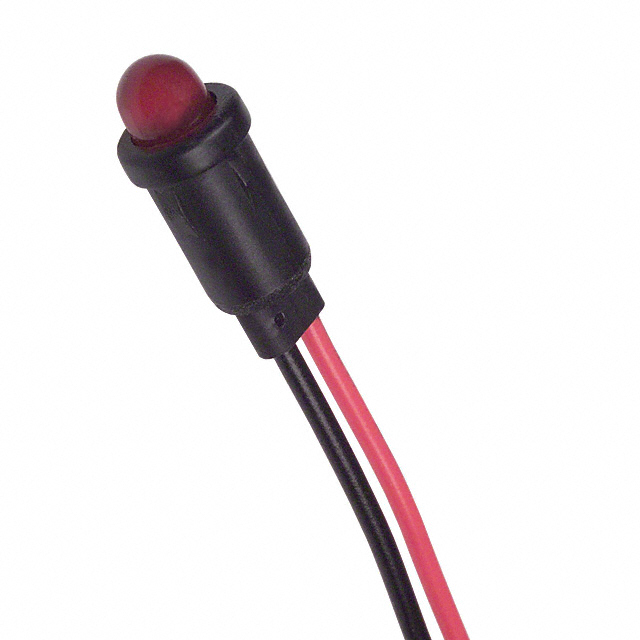

LED 5MM RED DIFF 6"LDS PANEL MT

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED 5MM RED DIFF 6"LDS PANEL MT

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Size	Lens Size	Lamp Color	Lens Style	Voltage	Millicandela Rating	Wavelength - Peak	Type	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Lens Transparency	Ratings	Current [custom]	Current [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current
Lumex Opto/Components Inc. SSI-LXH600GD12V150	Green	T-1 3/4	5 mm	Green	Round with Domed Top	12 V	20 mcd	565 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused	DC
Lumex Opto/Components Inc. SSI-LXH600HGW-150	White	T-1 3/4	5 mm	Green Red	Round with Domed Top	2 V 2.2 V		565 nm 700 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused		25 mA	25 mA	6 mcd	25 mcd
Lumex Opto/Components Inc. SSI-LXH600GD-150	Green	T-1 3/4	5 mm	Green	Round with Domed Top	2.2 V	30 mcd	565 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						25 mA
Lumex Opto/Components Inc. SSI-LXH600SID-150	Red	T-1	3 mm	Red	Round with Domed Top	2 V	100 mcd	636 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						30 mA
Lumex Opto/Components Inc. SSI-LXH600ID-150	Red	T-1 3/4	5 mm	Red	Round with Domed Top	2 V	40 mcd	635 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						30 mA
Lumex Opto/Components Inc. SSI-LXH600GD-250
Lumex Opto/Components Inc. SSI-LXH600USBD-150	Blue	T-1 3/4	5 mm	Blue	Round with Domed Top	3.5 V	60 mcd		LED	Round	6.35 mm	0.25 "	60 °	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Red Diffused 60° 2V 30mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
