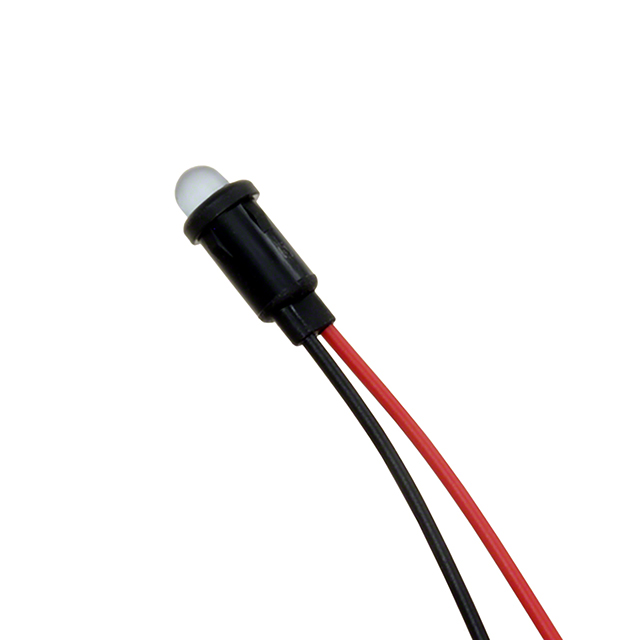

SSI-LXH600USBD-150

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Search across all available documentation for this part.

Active

Lumex Opto/Components Inc.

LED PANEL INDICATOR BLUE 3.5V

Technical Specifications

Parameters and characteristics for this part

Part	Lens Color	Lens Size	Lens Size	Lamp Color	Lens Style	Voltage	Millicandela Rating	Wavelength - Peak	Type	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Viewing Angle	Lens Transparency	Ratings	Current [custom]	Current [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]	Current
Lumex Opto/Components Inc. SSI-LXH600GD12V150	Green	T-1 3/4	5 mm	Green	Round with Domed Top	12 V	20 mcd	565 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused	DC
Lumex Opto/Components Inc. SSI-LXH600HGW-150	White	T-1 3/4	5 mm	Green Red	Round with Domed Top	2 V 2.2 V		565 nm 700 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused		25 mA	25 mA	6 mcd	25 mcd
Lumex Opto/Components Inc. SSI-LXH600GD-150	Green	T-1 3/4	5 mm	Green	Round with Domed Top	2.2 V	30 mcd	565 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						25 mA
Lumex Opto/Components Inc. SSI-LXH600SID-150	Red	T-1	3 mm	Red	Round with Domed Top	2 V	100 mcd	636 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						30 mA
Lumex Opto/Components Inc. SSI-LXH600ID-150	Red	T-1 3/4	5 mm	Red	Round with Domed Top	2 V	40 mcd	635 nm	LED	Round	6.35 mm	0.25 "	60 °	Diffused						30 mA
Lumex Opto/Components Inc. SSI-LXH600GD-250
Lumex Opto/Components Inc. SSI-LXH600USBD-150	Blue	T-1 3/4	5 mm	Blue	Round with Domed Top	3.5 V	60 mcd		LED	Round	6.35 mm	0.25 "	60 °	Diffused

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Panel Indicator Blue Diffused 60° 3.5V 20mA Wire Leads - 6" (152.40mm)

Technical documentation and resources

No documents available
