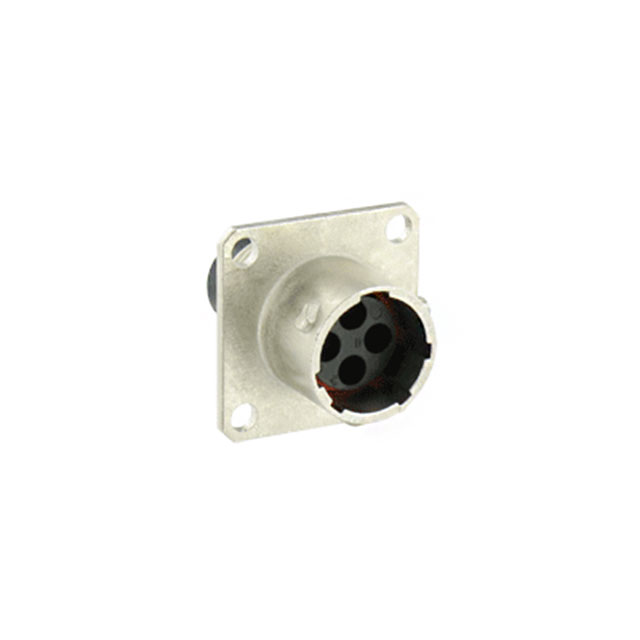

UT00104PH6
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Search across all available documentation for this part.
UT00104PH6
ActiveSouriau-Sunbank by Eaton
CONN RCPT HSNG MALE 4POS PNL MNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UT00104PH6 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Size | 16 |
| Contact Type | Crimp and Solder |
| Fastening Type | Bayonet Lock |
| Housing Color | Silver |
| Ingress Protection | IP68, IP69K |
| Insert Material | Polyamide (PA66), Nylon 6/6 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Feature | Flange |
| Note | Contacts Not Included |
| Number of Positions | 4 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | N |
| Shell Finish | Nickel |
| Shell Material | Zinc Alloy, Halogen Free |
| Shell Size - Insert | 10-4 |
| Shielding | Shielded |
| Type | For Male Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.44 | |
| 10 | $ 17.90 | |||
| 25 | $ 17.13 | |||
| 50 | $ 16.57 | |||
| 100 | $ 16.02 | |||
| 250 | $ 15.14 | |||
| 500 | $ 14.70 | |||
Description
General part information
UT001 Series
4 Position Circular Connector Receptacle Housing Panel Mount
