UT00102W2PH

Active

Souriau-Sunbank by Eaton

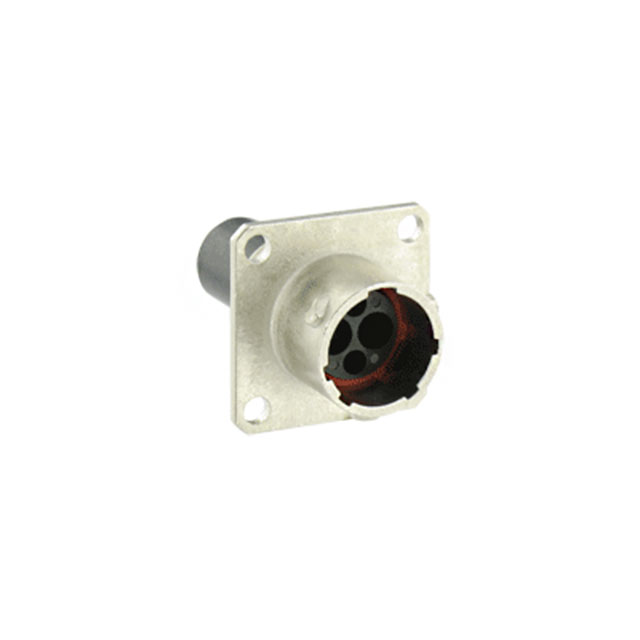

CONN RCPT HSNG MALE 4POS PNL MNT

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	UT00102W2PH

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Size	12 (2), 20 (2)
Contact Type	Crimp and Solder
Fastening Type	Bayonet Lock
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Note	Contacts Not Included
Number of Positions	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Finish	Nickel
Shell Material	Zinc Alloy, Halogen Free
Shell Size - Insert	10-2W2
Shielding	Shielded
Type	For Male Pins

UT001 Series

Part	Shell Size - Insert	Ingress Protection	Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Connector Type	Number of Positions	Insert Material	Shell Material	Material Flammability Rating	Shielding	Housing Color	Contact Shape	Shell Finish	Note	Orientation	Mounting Feature	Contact Type	Fastening Type	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Contact Size	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]
Souriau-Sunbank by Eaton UT00104PH6	10-4	IP68 IP69K	For Male Pins	-40 °C	105 ░C	16	Receptacle Housing	4	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock
Souriau-Sunbank by Eaton UT001619SHT		Environment Resistant	For Female Sockets	-55 °C	125 °C	16	Receptacle Housing	19	Thermoplastic Glass Filled	Aluminum Alloy	UL94 V-0	Shielded	Silver	Circular	Tin	Contacts Not Included	N	Flange	Crimp	Bayonet Lock	16	19
Souriau-Sunbank by Eaton UT00124PH6	12-4	IP68 IP69K	For Male Pins	-40 °C	105 ░C	16	Receptacle Housing	4	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock
Souriau-Sunbank by Eaton UT001619PZH		IP67 - Dust Tight Waterproof	For Male Pins	-40 °C	105 ░C	16	Receptacle Housing	19	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	Z	Flange	Crimp and Solder	Bayonet Lock	16	19
Souriau-Sunbank by Eaton UT001412SWH	14-12	IP67 - Dust Tight Waterproof	For Female Sockets	-40 °C	105 ░C	16	Receptacle Housing	12	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	W	Flange	Crimp and Solder	Bayonet Lock
Souriau-Sunbank by Eaton UT00124SH	12-4	IP67 - Dust Tight Waterproof	For Female Sockets	-40 °C	105 ░C	16	Receptacle Housing	4	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock
Souriau-Sunbank by Eaton UT00102W2PH	10-2W2	IP67 - Dust Tight Waterproof	For Male Pins	-40 °C	105 ░C		Receptacle Housing	4	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock			12 (2) 20 (2)
Souriau-Sunbank by Eaton UT00104SWH	10-4	IP67 - Dust Tight Waterproof	For Female Sockets	-40 °C	105 ░C	16	Receptacle Housing	4	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	W	Flange	Crimp and Solder	Bayonet Lock
Souriau-Sunbank by Eaton UT00142G1PH6	14-2	IP68 IP69K	For Male Pins	-40 °C	105 ░C	8	Receptacle Housing		Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock				2	3	1
Souriau-Sunbank by Eaton UT001619PH6		IP68 IP69K	For Male Pins	-40 °C	105 ░C	16	Receptacle Housing	19	Polyamide (PA66) Nylon 6/6	Zinc Alloy Halogen Free	UL94 V-0	Shielded	Silver	Circular	Nickel	Contacts Not Included	N	Flange	Crimp and Solder	Bayonet Lock	16	19
