011024CD018
ActiveEssentra Access Solutions

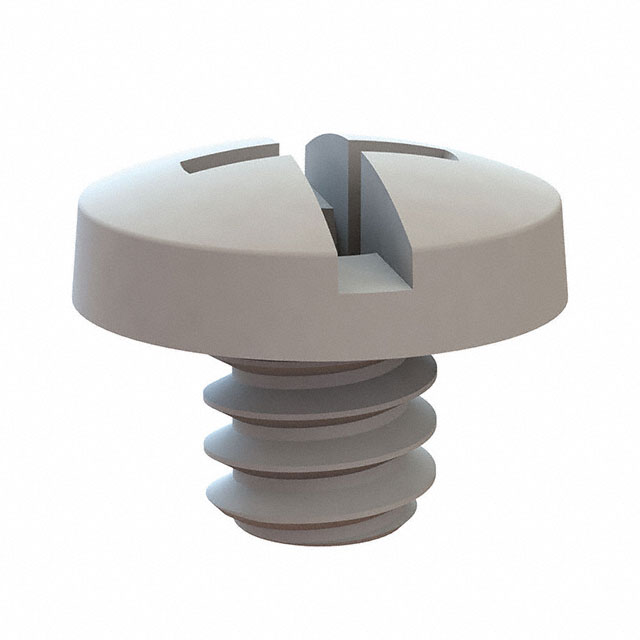

BINDER COMBINATION SCREW 10-24
Deep-Dive with AI
Search across all available documentation for this part.
011024CD018
ActiveEssentra Access Solutions
BINDER COMBINATION SCREW 10-24
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 011024CD018 |
|---|---|
| Drive Type | Combination |
| Head Diameter [diameter] | 0.389 " |
| Head Diameter [diameter] | 9.87 mm |
| Head Height [z] | 5.97 mm |
| Head Height [z] | 0.235 " |
| Length - Below Head [x] | 4.76 mm |
| Length - Below Head [x] | 0.188 in |
| Length - Overall [x] | 10.73 mm |
| Length - Overall [x] | 0.423 in |
| Material | Nylon |
| Screw Head Type | Binding Head |
| Thread Size | #10-24 |
| Type | Machine Screw |
011024CD Series
| Part | Screw Head Type | Head Diameter [diameter] | Head Diameter [diameter] | Thread Size | Head Height [z] | Head Height [z] | Length - Below Head [custom] | Length - Below Head [custom] | Material | Drive Type | Type | Length - Below Head | Length - Below Head | Length - Below Head | Length - Overall [x] | Length - Overall [x] | Length - Overall [x] | Length - Overall | Length - Overall | Length - Below Head [x] | Length - Below Head [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | 7.94 mm | 0.313 in | Nylon | Combination | Machine Screw | ||||||||||
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | Nylon | Combination | Machine Screw | 6.35 mm | 0.25 in | 0.25 in | 12.32 mm | 0.485 " | |||||||
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | Nylon | Combination | Machine Screw | 3.18 mm | 0.125 in | 0.125 in | 9.14 mm | 0.36 " | |||||||
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | Nylon | Combination | Machine Screw | 0.375 " | 0.375 " | 9.53 mm | 15.49 mm | 0.61 in | |||||||
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | Nylon | Combination | Machine Screw | 10.73 mm | 0.423 in | 4.76 mm | 0.188 in | ||||||||
Essentra Access Solutions | Binding Head | 0.389 " | 9.87 mm | #10-24 | 5.97 mm | 0.235 " | Nylon | Combination | Machine Screw | 31.75 mm | 1.25 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.07 | |
Description
General part information
011024CD Series
#10-24 Binding Head Machine Screw Combination Drive Nylon
Documents
Technical documentation and resources
No documents available
