011024CD037

Active

Essentra Access Solutions

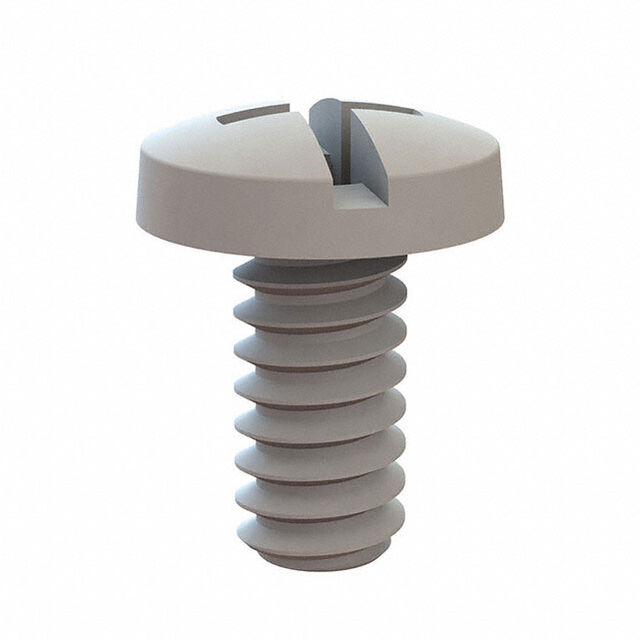

MACH SCREW BINDING COMBO #10-24

Search across all available documentation for this part.

Active

Essentra Access Solutions

MACH SCREW BINDING COMBO #10-24

Technical Specifications

Parameters and characteristics for this part

Part	Screw Head Type	Head Diameter [diameter]	Head Diameter [diameter]	Thread Size	Head Height [z]	Head Height [z]	Length - Below Head [custom]	Length - Below Head [custom]	Material	Drive Type	Type	Length - Below Head	Length - Below Head	Length - Below Head	Length - Overall [x]	Length - Overall [x]	Length - Overall [x]	Length - Overall	Length - Overall	Length - Below Head [x]	Length - Below Head [x]
Essentra Access Solutions 011024CD031	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "	7.94 mm	0.313 in	Nylon	Combination	Machine Screw
Essentra Access Solutions 011024CD025	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "			Nylon	Combination	Machine Screw	6.35 mm	0.25 in	0.25 in	12.32 mm	0.485 "
Essentra Access Solutions 011024CD012	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "			Nylon	Combination	Machine Screw	3.18 mm	0.125 in	0.125 in		9.14 mm	0.36 "
Essentra Access Solutions 011024CD037	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "			Nylon	Combination	Machine Screw	0.375 "	0.375 "	9.53 mm				15.49 mm	0.61 in
Essentra Access Solutions 011024CD018	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "			Nylon	Combination	Machine Screw					10.73 mm	0.423 in			4.76 mm	0.188 in
Essentra Access Solutions 011024CD125	Binding Head	0.389 "	9.87 mm	#10-24	5.97 mm	0.235 "			Nylon	Combination	Machine Screw									31.75 mm	1.25 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.06

General part information

#10-24 Binding Head Machine Screw Combination Drive Nylon

Technical documentation and resources

No documents available
