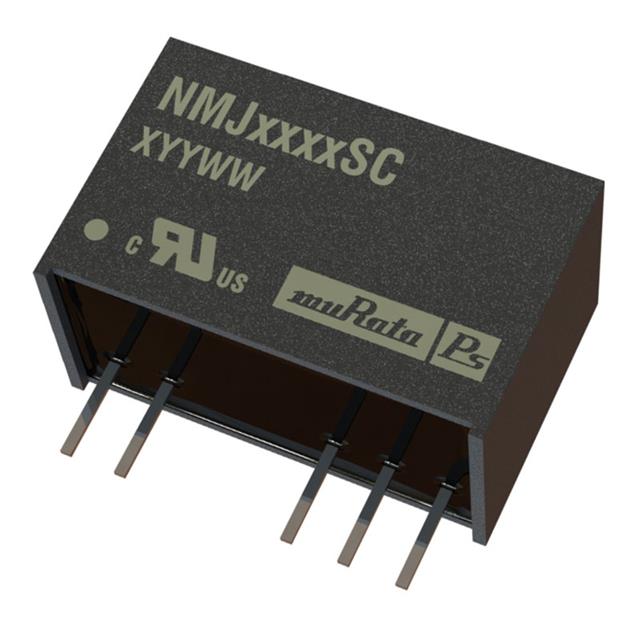

NMJ1205SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 5 V
Deep-Dive with AI
Search across all available documentation for this part.
NMJ1205SC
ActiveISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 2 OUTPUT, 5 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | NMJ1205SC |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 100 mA |
| Current - Output (Max) | 100 mA |
| Efficiency | 60 % |
| Mounting Type | Through Hole |
| Number of Outputs | 2 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 7-SIP Module, 5 Leads |
| Size / Dimension [x] | 19.6 mm |
| Size / Dimension [x] | 0.77 in |
| Size / Dimension [y] | 0.39 " |
| Size / Dimension [y] | 9.9 mm |
| Size / Dimension [z] | 0.49 in |
| Size / Dimension [z] | 12.4 mm |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 13.2 V |
| Voltage - Input (Min) [Min] | 10.8 V |
| Voltage - Isolation | 5.2 kV |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | -5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
NMJ12 Series
The NMJ1205SC is a 2-output 1W board-mount isolated DC/DC Converter offering pin and functionality compatibility with the NMV series SIP DC/DC converters. This device is suitable for applications where safety and miniaturization are of paramount importance. Isolation barrier approved for supplementary/reinforced insulation.
