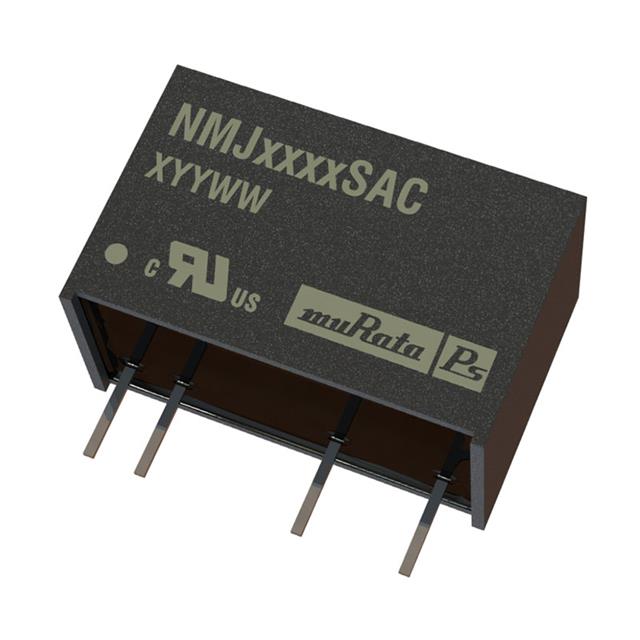

NMJ1209SAC

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, 5.2KV ISOLATION, ITE, 1:1, 1 W, 1 OUTPUT, 9 V, 111 MA

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED THROUGH HOLE DC/DC CONVERTER, 5.2KV ISOLATION, ITE, 1:1, 1 W, 1 OUTPUT, 9 V, 111 MA

Technical Specifications

Parameters and characteristics for this part

Part	Voltage - Output 1	Type	Applications	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Efficiency	Package / Case	Mounting Type	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max)	Voltage - Output 2	Current - Output (Max)	Current - Output (Max) [Max]
Murata Power Solutions Inc. NMJ1209SAC	9 V	Isolated Module	ITE (Commercial)	0.49 in	0.39 "	12.4 mm	9.9 mm	19.6 mm	0.77 in	5.2 kV	10.8 V	13.2 V	73 %	7-SIP Module 4 Leads	Through Hole	1	-40 °C	60 °C
Murata Power Solutions Inc. NMJ1215SC	15 V	Isolated Module	ITE (Commercial)	0.49 in	0.39 "	12.4 mm	9.9 mm	19.6 mm	0.77 in	5.2 kV	10.8 V	13.2 V	65 %	7-SIP Module 5 Leads	Through Hole	2	-40 °C	60 °C	33 mA	-15 V
Murata Power Solutions Inc. NMJ1205SC	5 V	Isolated Module	ITE (Commercial)	0.49 in	0.39 "	12.4 mm	9.9 mm	19.6 mm	0.77 in	5.2 kV	10.8 V	13.2 V	60 %	7-SIP Module 5 Leads	Through Hole	2	-40 °C	60 °C	100 mA	-5 V	100 mA
Murata Power Solutions Inc. NMJ1215SAC	15 V	Isolated Module	ITE (Commercial)	0.49 in	0.39 "	12.4 mm	9.9 mm	19.6 mm	0.77 in	5.2 kV	10.8 V	13.2 V	74 %	7-SIP Module 4 Leads	Through Hole	1	-40 °C	60 °C				66 mA
Murata Power Solutions Inc. NMJ1205SAC	5 V	Isolated Module	ITE (Commercial)	0.49 in	0.39 "	12.4 mm	9.9 mm	19.6 mm	0.77 in	5.2 kV	10.8 V	13.2 V	69 %	7-SIP Module 4 Leads	Through Hole	1	-40 °C	60 °C				200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

ISOLATED THROUGH HOLE DC/DC CONVERTER, 5.2KV ISOLATION, ITE, 1:1, 1 W, 1 OUTPUT, 9 V, 111 MA
