PH1-3B-08-MVS-5375

Active

Adam Tech

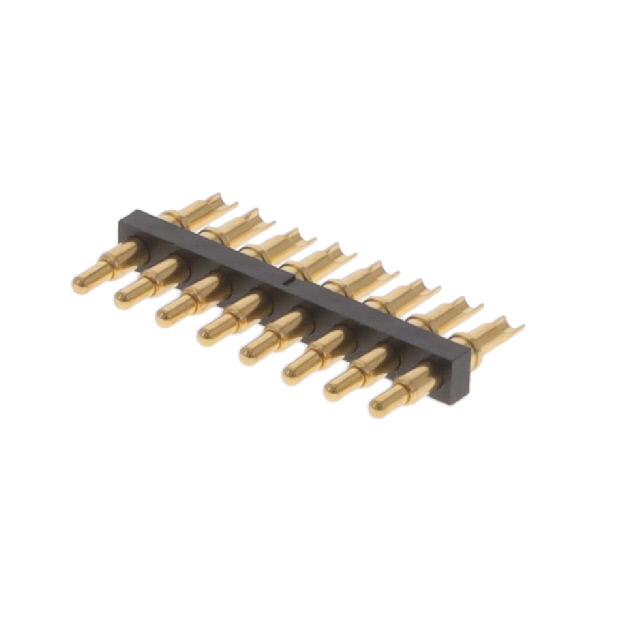

CONN SPRING PISTON 8POS SLD PCB

Search across all available documentation for this part.

Active

Adam Tech

CONN SPRING PISTON 8POS SLD PCB

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish	Pitch [x]	Pitch [x]	Mounting Type	Number of Rows	Material	Connector Type	Number of Contacts [custom]	Number of Contacts
Adam Tech PH1-3B-02-MVF-4360	Gold	2.54 mm	0.1 in	Surface Mount	1	Brass	Piston
Adam Tech PH1-3B-04-MVF-4360	Gold	2.54 mm	0.1 in	Surface Mount	1	Brass	Piston	4
Adam Tech PH1-3B-02-MVF-5375	Gold	2.54 mm	0.1 in	Surface Mount	1	Brass	Piston
Adam Tech PH1-3B-04-MVF-3345	Gold	2.54 mm	0.1 in	Surface Mount	1	Brass	Piston	4
Adam Tech PH1-3B-10-MVP-3345	Gold	2.54 mm	0.1 in	Through Hole	1	Brass	Piston		10
Adam Tech PH1-3B-02-MVS-5375	Gold	2.54 mm	0.1 in	Solder Cup Through Hole	1	Brass	Piston
Adam Tech PH1-3B-08-MVP-4360	Gold	2.54 mm	0.1 in	Through Hole	1	Brass	Piston		8
Adam Tech PH1-3B-08-MVS-5375	Gold	2.54 mm	0.1 in	Solder Cup Through Hole	1	Brass	Piston		8
Adam Tech PH1-3B-06-MVS-5375	Gold	2.54 mm	0.1 in	Solder Cup Through Hole	1	Brass	Piston	6
Adam Tech PH1-3B-04-MVP-5375	Gold	2.54 mm	0.1 in	Through Hole	1	Brass	Piston	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Spring Piston Connector Through Hole, Solder Cup
