PH1-3B-10-MVP-3345
ActiveAdam Tech

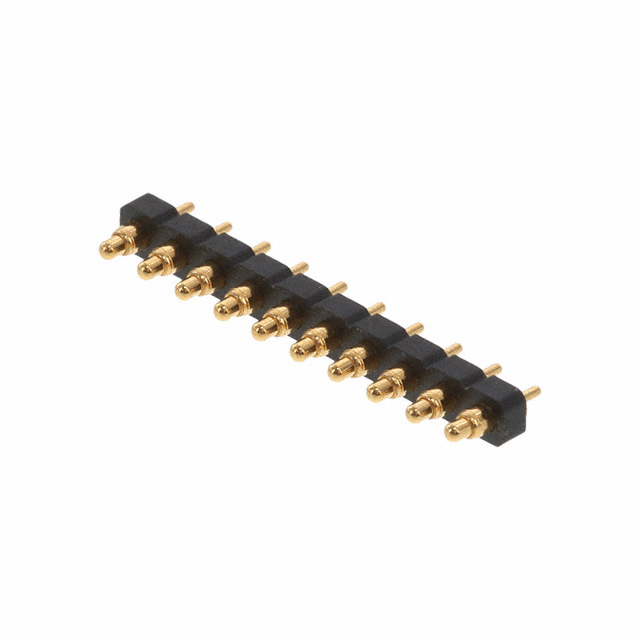

CONN SPRING PISTON 10POS PCB
Deep-Dive with AI
Search across all available documentation for this part.
PH1-3B-10-MVP-3345
ActiveAdam Tech
CONN SPRING PISTON 10POS PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PH1-3B-10-MVP-3345 |
|---|---|
| Connector Type | Piston |
| Contact Finish | Gold |
| Material | Brass |
| Mounting Type | Through Hole |
| Number of Contacts | 10 |
| Number of Rows | 1 |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
PH1-3B Series
| Part | Contact Finish | Pitch [x] | Pitch [x] | Mounting Type | Number of Rows | Material | Connector Type | Number of Contacts [custom] | Number of Contacts |
|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Gold | 2.54 mm | 0.1 in | Surface Mount | 1 | Brass | Piston | ||
Adam Tech | Gold | 2.54 mm | 0.1 in | Surface Mount | 1 | Brass | Piston | 4 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Surface Mount | 1 | Brass | Piston | ||
Adam Tech | Gold | 2.54 mm | 0.1 in | Surface Mount | 1 | Brass | Piston | 4 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Through Hole | 1 | Brass | Piston | 10 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Solder Cup Through Hole | 1 | Brass | Piston | ||
Adam Tech | Gold | 2.54 mm | 0.1 in | Through Hole | 1 | Brass | Piston | 8 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Solder Cup Through Hole | 1 | Brass | Piston | 8 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Solder Cup Through Hole | 1 | Brass | Piston | 6 | |
Adam Tech | Gold | 2.54 mm | 0.1 in | Through Hole | 1 | Brass | Piston | 4 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 50 | $ 13.72 | |
Description
General part information
PH1-3B Series
10 Position Spring Piston Connector Through Hole
