R191421000

Active

Radiall USA, Inc.

RF / COAXIAL ADAPTER, BNC, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN

R191421000

Active

Radiall USA, Inc.

RF / COAXIAL ADAPTER, BNC, JACK, N, PLUG, STRAIGHT ADAPTER, 50 OHM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	R191421000

Adapter Series	BNC to N
Adapter Type	Plug to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Male Pin, N Plug
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

R19142 Series

Part	Adapter Type	Adapter Series	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Style	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Conversion Type	Fastening Type	Body Material	Mounting Type	Center Contact Plating	Impedance	Body Finish	Center Gender	Mounting Feature	Mating Cycles
Radiall USA, Inc. R191421000	Plug to Jack	BNC to N	4 GHz	Male Pin N Plug	Beryllium Copper	BNC Jack Female Socket	Straight	125 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock Threaded	Brass	Free Hanging (In-Line)	Gold	50 Ohms	Nickel
Radiall USA, Inc. R191424000	Jack to Jack	BNC to N	4 GHz	Female Socket N Jack	Beryllium Copper	BNC Jack Female Socket	Straight	165 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock Threaded	Brass		Gold	50 Ohms	Nickel	Female to Female	Flange
Radiall USA, Inc. R191429000	Jack to Jack	BNC to C	4 GHz	C Jack Male Pin	Beryllium Copper	BNC Jack Female Socket	Straight	125 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock	Brass	Free Hanging (In-Line)		50 Ohms	Nickel			500

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 27.77
		10	$ 24.31
		25	$ 23.26
		50	$ 22.51
		100	$ 21.76
		250	$ 20.56
		500	$ 19.96
Newark	Each	1	$ 19.85
		25	$ 18.34
		50	$ 16.82
		100	$ 16.40
		250	$ 15.90

Description

General part information

R19142 Series

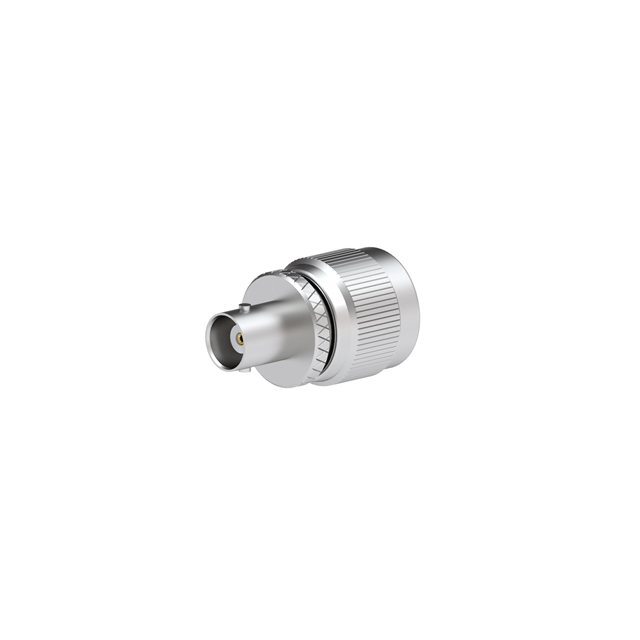

The R191421000 is a straight BNC to N Adapter with female to male connection and gold-plated nickel centre contact. It features 4GHz maximum frequency, PTFE insulator and silicone gasket.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
