R191424000

Active

Radiall USA, Inc.

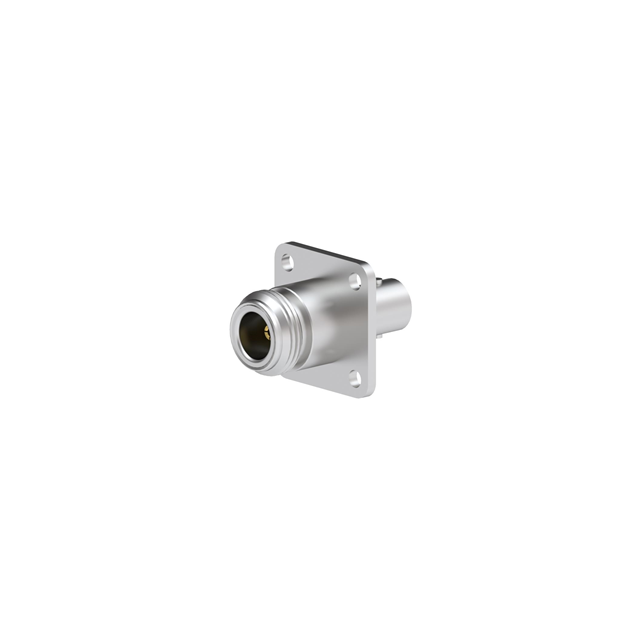

BNC FEMALE - N FEMALE SQUARE FLA

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC FEMALE - N FEMALE SQUARE FLA

Technical Specifications

Parameters and characteristics for this part

Specification	R191424000

Adapter Series	BNC to N
Adapter Type	Jack to Jack
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	BNC Jack, Female Socket
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock, Threaded
Frequency - Max [Max]	4 GHz
Impedance	50 Ohms
Mounting Feature	Flange
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Adapter Type	Adapter Series	Frequency - Max [Max]	Convert To (Adapter End)	Center Contact Material	Convert From (Adapter End)	Style	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Conversion Type	Fastening Type	Body Material	Mounting Type	Center Contact Plating	Impedance	Body Finish	Center Gender	Mounting Feature	Mating Cycles
Radiall USA, Inc. R191421000	Plug to Jack	BNC to N	4 GHz	Male Pin N Plug	Beryllium Copper	BNC Jack Female Socket	Straight	125 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock Threaded	Brass	Free Hanging (In-Line)	Gold	50 Ohms	Nickel
Radiall USA, Inc. R191424000	Jack to Jack	BNC to N	4 GHz	Female Socket N Jack	Beryllium Copper	BNC Jack Female Socket	Straight	165 °C	-65 ░C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock Threaded	Brass		Gold	50 Ohms	Nickel	Female to Female	Flange
Radiall USA, Inc. R191429000	Jack to Jack	BNC to C	4 GHz	C Jack Male Pin	Beryllium Copper	BNC Jack Female Socket	Straight	125 °C	-55 °C	Polytetrafluoroethylene (PTFE)	Between Series	Bayonet Lock	Brass	Free Hanging (In-Line)		50 Ohms	Nickel			500

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 44.91

General part information

Adapter Coaxial Connector BNC Jack, Female Socket To N Jack, Female Socket 50 Ohms
