09140012775

Active

HARTING Technology Group

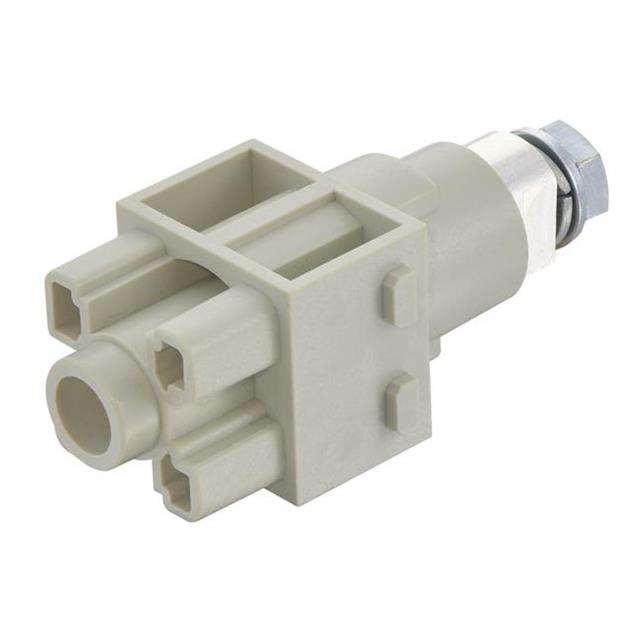

HAN 200AMP MODULE FEMALE WITH M8 SCREW BOLT

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN 200AMP MODULE FEMALE WITH M8 SCREW BOLT

Technical Specifications

Parameters and characteristics for this part

Part	Connector Type	Gender	Housing Material	Contact Finish	Termination Style	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Current Rating (Amps)	Color	Material Flammability Rating	Voltage Rating
HARTING Technology Group 09140012732	Module	Female	Zinc Die Cast	Silver	Screw	1	125 °C	-40 °C	Copper Alloy
HARTING Technology Group 09140012761	Module	Female								200 A
HARTING Technology Group 09140012672
HARTING Technology Group 09140012762	Module	Female	Polycarbonate (PC)	Silver	Screw	1	125 °C	-40 °C	Copper Alloy	200 A	Gray	UL94 V-0	600 V
HARTING Technology Group 09140012763	Module	Female	Polycarbonate (PC)	Silver	Screw	1	125 °C	-40 °C	Copper Alloy	200 A	Gray	UL94 V-0	600 V
HARTING Technology Group 09140012681	Module	Male	Polycarbonate (PC)	Silver	Screw	1	125 °C	-40 °C	Copper Alloy		Gray	UL94 V-0
HARTING Technology Group 09140012675	Module									200 A
HARTING Technology Group 09140012768	Module	Female	Polycarbonate (PC)	Silver	Screw	1	125 °C	-40 °C	Copper Alloy	200 A	Gray	UL94 V-0	600 V
HARTING Technology Group 09140012781	Module	Female	Polycarbonate (PC)	Silver	Screw	1	125 °C	-40 °C	Copper Alloy		Gray	UL94 V-0
HARTING Technology Group 09140012775	Module									200 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Module Position

Technical documentation and resources
