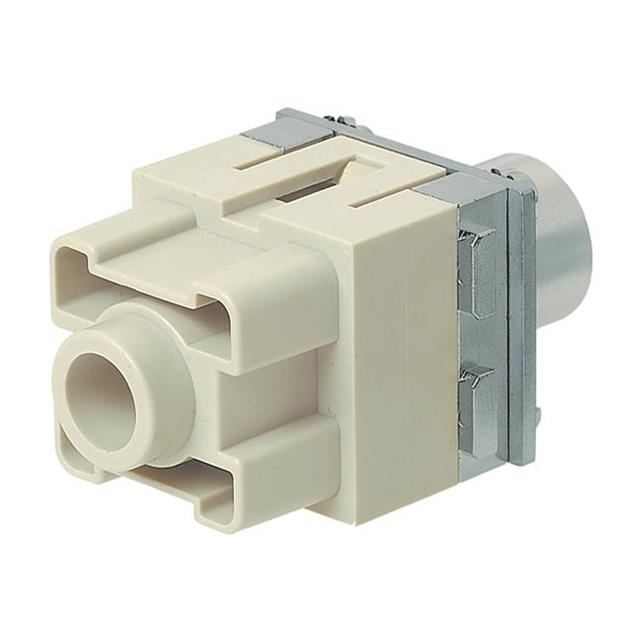

09140012768 - 09140012767

09140012768

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 1 CONTACT, RECEPTACLE, SCREW SOCKET

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetProduct Change Notice EN+1
09140012768 - 09140012767

09140012768

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, HAN-MODULAR SERIES, INSERT, 1 CONTACT, RECEPTACLE, SCREW SOCKET

Deep-Dive with AI

DocumentsDatasheetProduct Change Notice EN+1

Technical Specifications

Parameters and characteristics for this part

Specification09140012768
ColorGray
Connector TypeModule
Contact FinishSilver
Contact MaterialCopper Alloy
Current Rating (Amps)200 A
GenderFemale
Housing MaterialPolycarbonate (PC)
Material Flammability RatingUL94 V-0
Number of Positions1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Termination StyleScrew
Voltage Rating600 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 97.76
10$ 73.91
25$ 66.99
50$ 62.50
100$ 58.56
NewarkEach 1$ 91.92
5$ 85.83
10$ 79.75
25$ 73.94
50$ 69.30

Description

General part information

09140012 Series

The 09140012768 from Harting is a Han-Modular® female module.
