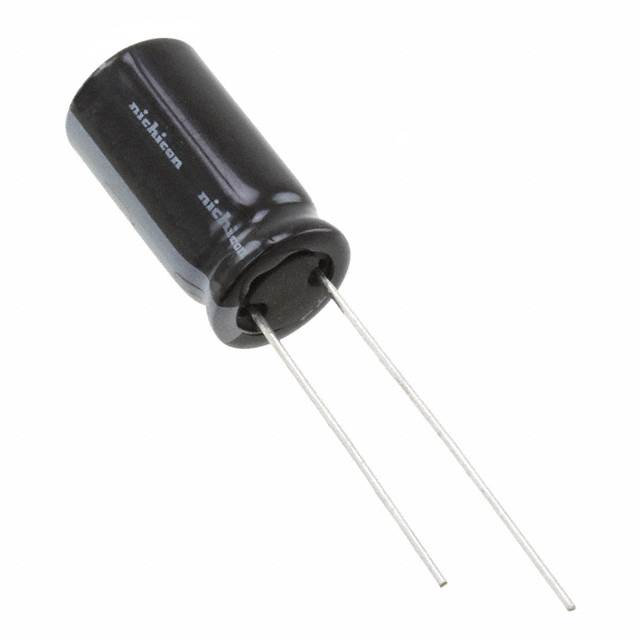

UHE1A102MPD

Active

NICHICON

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 10V, 20% +TOL, 20% -TOL, 1000UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Search across all available documentation for this part.

Active

NICHICON

ALUMINUM ELECTROLYTIC CAPACITOR, POLARIZED, ALUMINUM (WET), 10V, 20% +TOL, 20% -TOL, 1000UF, THROUGH HOLE MOUNT, RADIAL LEADED, ROHS COMPLIANT

Technical Specifications

Parameters and characteristics for this part

Specification	UHE1A102MPD

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Impedance	69 mOhms
Lead Spacing	3.5 mm
Lead Spacing	0.138 in
Lifetime @ Temp.	6000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ High Frequency	1.05 A
Ripple Current @ Low Frequency	787.5 mA
Size / Dimension [diameter]	0.315 "
Size / Dimension [diameter]	8 mm
Tolerance	20 %
Voltage - Rated	10 V

Part	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Applications	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Impedance	Tolerance	Ripple Current @ High Frequency
NICHICON UHE1E102MHD6	Polar	10000 Hrs	1.425 A	General Purpose	Through Hole	1000 µF	-40 °C	105 ░C	20 mm	0.787 "	25 VDC	Radial Can	0.492 in	12.5 mm	5 mm	0.197 in	35 mOhms	20 %
NICHICON UHE1A102MPD	Polar	6000 Hrs	787.5 mA	General Purpose	Through Hole	1000 µF	-40 °C	105 ░C	20 mm	0.787 "	10 V	Radial Can	0.315 "	8 mm	3.5 mm	0.138 in	69 mOhms	20 %	1.05 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 10 V Aluminum Electrolytic Capacitors Radial, Can 6000 Hrs @ 105°C
