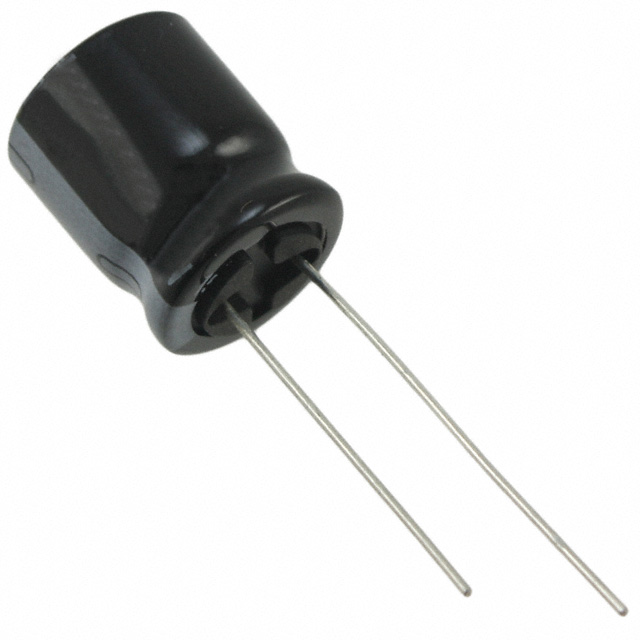

UHE1E102MHD6

Active

NICHICON

ELECTROLYTIC CAPACITOR, MINIATURE, 1000 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Search across all available documentation for this part.

Active

NICHICON

ELECTROLYTIC CAPACITOR, MINIATURE, 1000 ΜF, 25 V, ± 20%, PC PIN, 1000 HOURS @ 85°C, POLAR

Technical Specifications

Parameters and characteristics for this part

Specification	UHE1E102MHD6

Applications	General Purpose
Capacitance	1000 µF
Height - Seated (Max) [Max] [z]	20 mm
Height - Seated (Max) [Max] [z]	0.787 "
Impedance	35 mOhms
Lead Spacing	5 mm
Lead Spacing	0.197 in
Lifetime @ Temp.	10000 Hrs
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	Radial, Can
Polarization	Polar
Ripple Current @ Low Frequency	1.425 A
Size / Dimension [diameter]	0.492 in
Size / Dimension [diameter]	12.5 mm
Tolerance	20 %
Voltage - Rated	25 VDC

Part	Polarization	Lifetime @ Temp.	Ripple Current @ Low Frequency	Applications	Mounting Type	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Package / Case	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Impedance	Tolerance	Ripple Current @ High Frequency
NICHICON UHE1E102MHD6	Polar	10000 Hrs	1.425 A	General Purpose	Through Hole	1000 µF	-40 °C	105 ░C	20 mm	0.787 "	25 VDC	Radial Can	0.492 in	12.5 mm	5 mm	0.197 in	35 mOhms	20 %
NICHICON UHE1A102MPD	Polar	6000 Hrs	787.5 mA	General Purpose	Through Hole	1000 µF	-40 °C	105 ░C	20 mm	0.787 "	10 V	Radial Can	0.315 "	8 mm	3.5 mm	0.138 in	69 mOhms	20 %	1.05 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1000 µF 25 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
