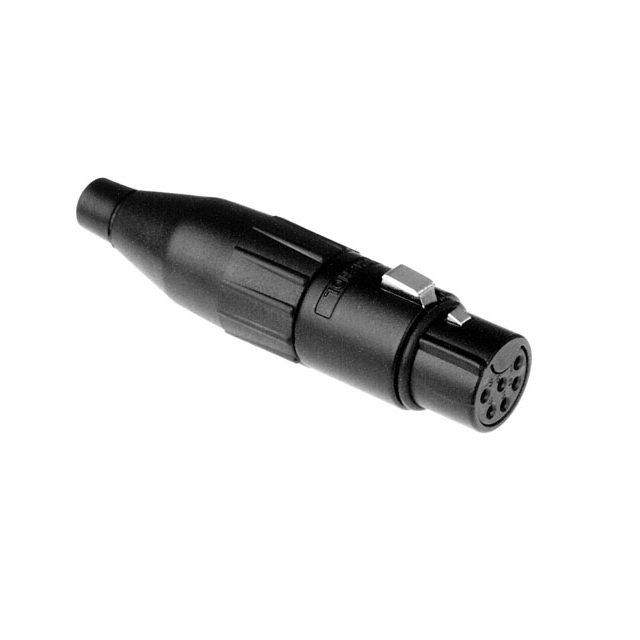

AC6AFB

Active

AMPHENOL AUDIO

6 POLE XLR FEMALE CABLE CONNECTOR, MACHINED CONTACTS, BLACK FINISH /BOX ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

6 POLE XLR FEMALE CABLE CONNECTOR, MACHINED CONTACTS, BLACK FINISH /BOX ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	AC6AFB

Applications	Audio
Backshell Material, Plating	Polyphenylene Ether (PPE)
Cable Opening [Max] [custom]	6.5 mm
Cable Opening [Max] [custom]	0.256 in
Cable Opening [Min] [custom]	0.118 in
Cable Opening [Min] [custom]	3 mm
Color	Black
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Silver
Contact Material	Phosphor Bronze
Current Rating (Amps)	7.5 A
Fastening Type	Latch Lock
Features	Cable Clamp, Backshell
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Black
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Unshielded

Part	Mounting Type	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Shielding	Shell Material	Fastening Type	Contact Material	Connector Type	Orientation	Current Rating (Amps)	Backshell Material, Plating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Ingress Protection	Applications	Features	Shell Finish	Number of Positions	Mounting Feature
AMPHENOL AUDIO AC6AFB	Free Hanging (In-Line)	Silver	0.118 in	6.5 mm	3 mm	0.256 in	Black	Unshielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets Plug	Keyed	7.5 A	Polyphenylene Ether (PPE)	XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Backshell Cable Clamp	Black	6
AMPHENOL AUDIO AC6AFDZ							Silver	Shielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets Plug	Keyed	7.5 A		XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Ground	Nickel	6	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 7.38
Newark	Each	100	$ 8.72
		250	$ 7.96

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
