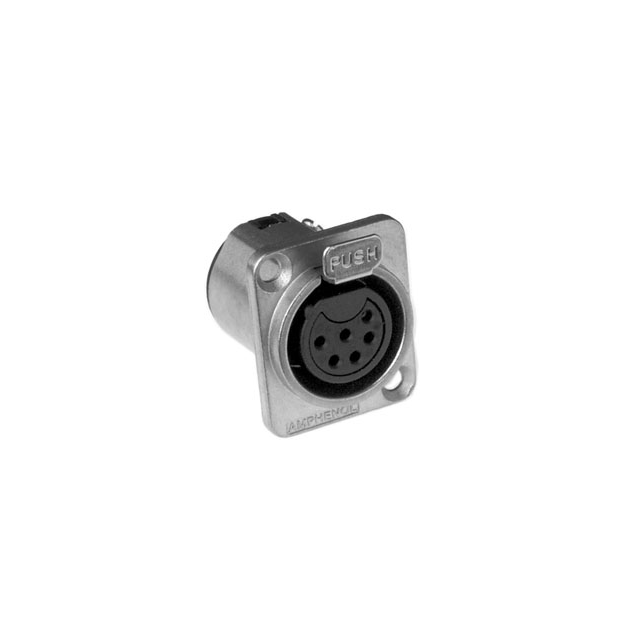

AC6AFDZ

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 6P SLDR CUP

Search across all available documentation for this part.

Active

AMPHENOL AUDIO

CONN PLUG FMALE XLR 6P SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	AC6AFDZ

Applications	Audio
Color	Silver
Connector Type	Female Sockets, Plug
Contact Material	Phosphor Bronze
Current Rating (Amps)	7.5 A
Fastening Type	Latch Lock
Features	Ground
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Die Cast
Shell Size - Insert	XLR
Shielding	Shielded

Part	Mounting Type	Contact Finish - Mating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Color	Shielding	Shell Material	Fastening Type	Contact Material	Connector Type	Orientation	Current Rating (Amps)	Backshell Material, Plating	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Material Flammability Rating	Ingress Protection	Applications	Features	Shell Finish	Number of Positions	Mounting Feature
AMPHENOL AUDIO AC6AFB	Free Hanging (In-Line)	Silver	0.118 in	6.5 mm	3 mm	0.256 in	Black	Unshielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets Plug	Keyed	7.5 A	Polyphenylene Ether (PPE)	XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Backshell Cable Clamp	Black	6
AMPHENOL AUDIO AC6AFDZ							Silver	Shielded	Zinc Die Cast	Latch Lock	Phosphor Bronze	Female Sockets Plug	Keyed	7.5 A		XLR	-25 °C	75 ░C	Metal	UL94 V-0	IP40	Audio	Ground	Nickel	6	Flange

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6 Position Circular Connector Plug, Female Sockets Solder Cup
