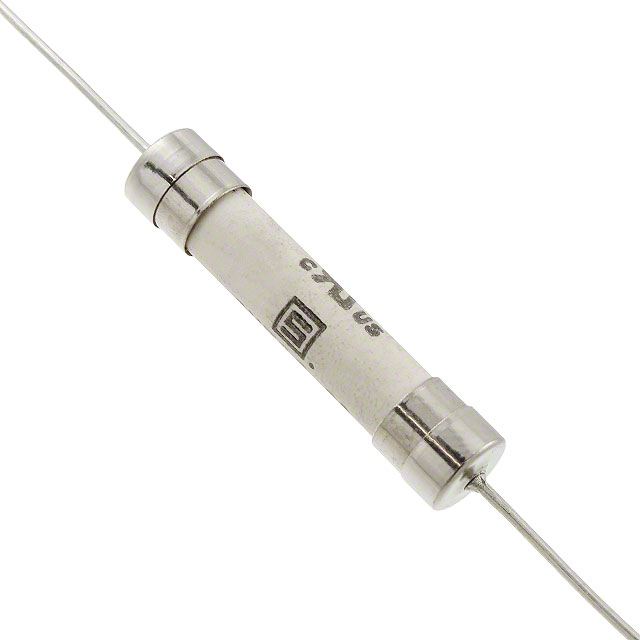

8020.5021.PT

Active

SCHURTER Inc.

FUSE CERM 10A 500VAC 400VDC 3AB

Search across all available documentation for this part.

Active

SCHURTER Inc.

FUSE CERM 10A 500VAC 400VDC 3AB

Technical Specifications

Parameters and characteristics for this part

Specification	8020.5021.PT

Breaking Capacity @ Rated Voltage	1 kA, 1.5 kA
Current Rating (Amps)	10 A
Fuse Type	Cartridge, Ceramic
Melting I˛t	700
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3AG, 3AB
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	0.27 in
Size / Dimension [diameter]	6.85 mm
Size / Dimension [x]	1.291 "
Size / Dimension [x]	32.8 mm
Voltage Rating - AC	500 V
Voltage Rating - DC	400 V

"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Melting I˛t	Current Rating (Amps)	Fuse Type	Voltage Rating - DC	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [z]	Size / Dimension [z]
SCHURTER Inc. 8020.5021.PT	85 °C	-40 °C	1.291 "	0.27 in	6.85 mm	32.8 mm	1/4	1-1/4	3AB 3AG	Through Hole	700	10 A	Cartridge Ceramic	400 V	500 V	1 kA 1.5 kA	Slow Blow
SCHURTER Inc. 8020.5021.G	85 °C	-40 °C		0.25 in	6.35 mm		1/4	1-1/4	3AB 3AG	Requires Holder	700	10 A	Cartridge Ceramic	400 V	500 V	1 kA 1.5 kA	Slow Blow	1.252 in	31.8 mm
