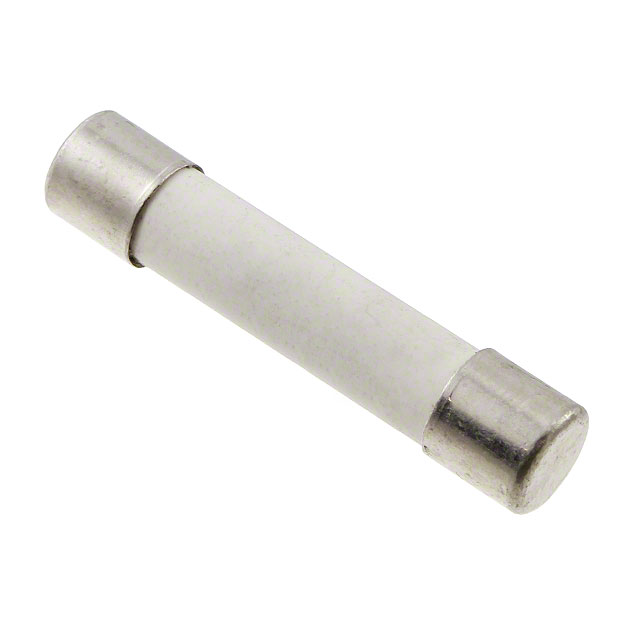

8020.5021.G

Active

SCHURTER Inc.

"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/

Search across all available documentation for this part.

Active

SCHURTER Inc.

"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/

Technical Specifications

Parameters and characteristics for this part

Specification	8020.5021.G

Breaking Capacity @ Rated Voltage	1 kA, 1.5 kA
Current Rating (Amps)	10 A
Fuse Type	Cartridge, Ceramic
Melting I˛t	700
Mounting Type	Requires Holder
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	3AB, 3AG
Package / Case [x]	1/4
Package / Case [y]	1-1/4
Response Time	Slow Blow
Size / Dimension [diameter]	6.35 mm
Size / Dimension [diameter]	0.25 in
Size / Dimension [z]	1.252 in
Size / Dimension [z]	31.8 mm
Voltage Rating - AC	500 V
Voltage Rating - DC	400 V

"SHT 6.3X32, 10 A, 400 VDC, 500 VAC, TIME-LAG T, FUSE\/

Part	Operating Temperature [Max]	Operating Temperature [Min]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case [x]	Package / Case [y]	Package / Case	Mounting Type	Melting I˛t	Current Rating (Amps)	Fuse Type	Voltage Rating - DC	Voltage Rating - AC	Breaking Capacity @ Rated Voltage	Response Time	Size / Dimension [z]	Size / Dimension [z]
SCHURTER Inc. 8020.5021.PT	85 °C	-40 °C	1.291 "	0.27 in	6.85 mm	32.8 mm	1/4	1-1/4	3AB 3AG	Through Hole	700	10 A	Cartridge Ceramic	400 V	500 V	1 kA 1.5 kA	Slow Blow
SCHURTER Inc. 8020.5021.G	85 °C	-40 °C		0.25 in	6.35 mm		1/4	1-1/4	3AB 3AG	Requires Holder	700	10 A	Cartridge Ceramic	400 V	500 V	1 kA 1.5 kA	Slow Blow	1.252 in	31.8 mm
