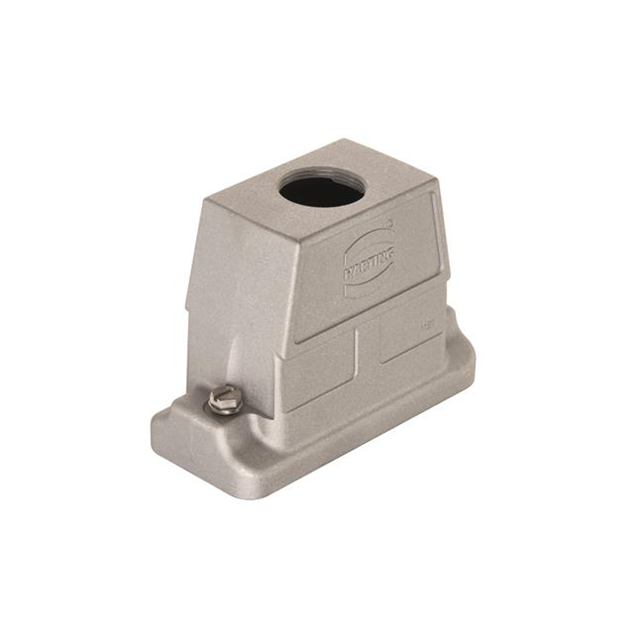

HAN 16 HP DIRECT EMC HOOD, TOP ENTRY, M25
Deep-Dive with AI
Search across all available documentation for this part.
19398160446
ActiveHARTING Technology Group
HAN 16 HP DIRECT EMC HOOD, TOP ENTRY, M25
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19398160446 |
|---|---|
| Connector Type | Hood |
| Housing Finish | EMC Coating |
| Housing Material | Die Cast, Aluminum |
| Ingress Protection | IP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof |
| Lock Location | Screw Locks on Hood |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Size | 16 B |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [x] | 5 in |
| Size / Dimension [y] | 57 mm |
| Size / Dimension [y] | 2.244 " |
| Size / Dimension [z] | 94 mm |
| Size / Dimension [z] | 3.701 in |
| Style | Top Entry |
| Thread Size | M25 |
19398160 Series
| Part | Size | Ingress Protection | Housing Material | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Connector Type | Housing Finish | Thread Size | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
HARTING Technology Group | 16 B | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Aluminum Die Cast | 95 mm | 3.74 in | 57 mm | 127 mm | 5 in | 2.244 " | Hood | EMC Coating | M25 | 125 °C | -40 °C | Screw Locks on Hood | Side Entry |
HARTING Technology Group | 16 B | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Aluminum Die Cast | 95 mm | 3.74 in | 57 mm | 127 mm | 5 in | 2.244 " | Hood | EMC Coating | M20 | 125 °C | -40 °C | Screw Locks on Hood | Side Entry |
HARTING Technology Group | 16 B | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Aluminum Die Cast | 94 mm | 3.701 in | 57 mm | 127 mm | 5 in | 2.244 " | Hood | EMC Coating | M20 | 125 °C | -40 °C | Screw Locks on Hood | Top Entry |
HARTING Technology Group | 16 B | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Aluminum Die Cast | 94 mm | 3.701 in | 57 mm | 127 mm | 5 in | 2.244 " | Hood | EMC Coating | M25 | 125 °C | -40 °C | Screw Locks on Hood | Top Entry |
HARTING Technology Group | 16 B | Dust Tight Water Resistant Waterproof IP66 IP68 IP69K | Aluminum Die Cast | 95 mm | 3.74 in | 57 mm | 127 mm | 5 in | 2.244 " | Hood | EMC Coating | 125 °C | -40 °C | Screw Locks on Hood | Side Entry |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19398160 Series
Hood Connector Top Entry M25 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
