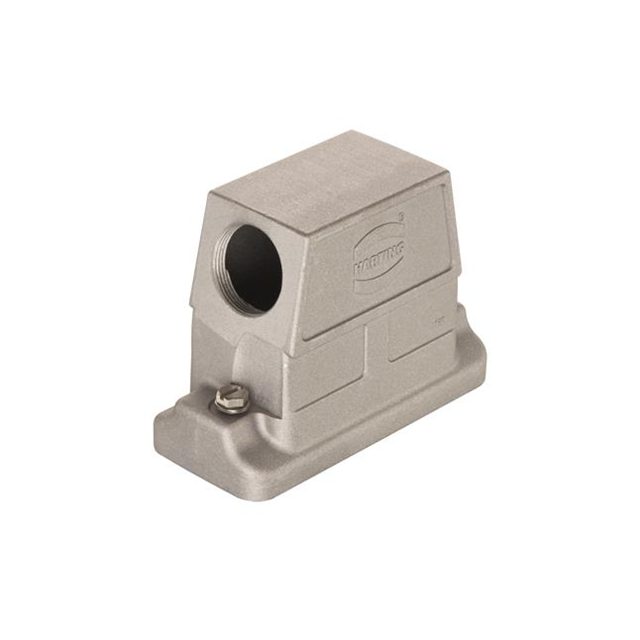

19398160546 - 19398160545

19398160546

Active
HARTING Technology Group

HAN 16 HP DIRECT EMC HOOD, SIDE ENTRY, M25

Deep-Dive with AI

Documents19398160546 DatasheetDatasheet

Technical Specifications

Parameters and characteristics for this part

Specification19398160546
Connector TypeHood
Housing FinishEMC Coating
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP69K, IP66, IP68, Dust Tight, Water Resistant, Waterproof
Lock LocationScrew Locks on Hood
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size16 B
Size / Dimension [x]127 mm
Size / Dimension [x]5 in
Size / Dimension [y]57 mm
Size / Dimension [y]2.244 "
Size / Dimension [z]95 mm
Size / Dimension [z]3.74 in
StyleSide Entry
Thread SizeM25

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 158.98
NewarkEach 1$ 164.81
10$ 155.56
25$ 150.93
50$ 139.81
100$ 132.41

Description

General part information

19398160 Series

Hood Connector Side Entry M25 16B IP66/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
