0395305011

Active

Molex

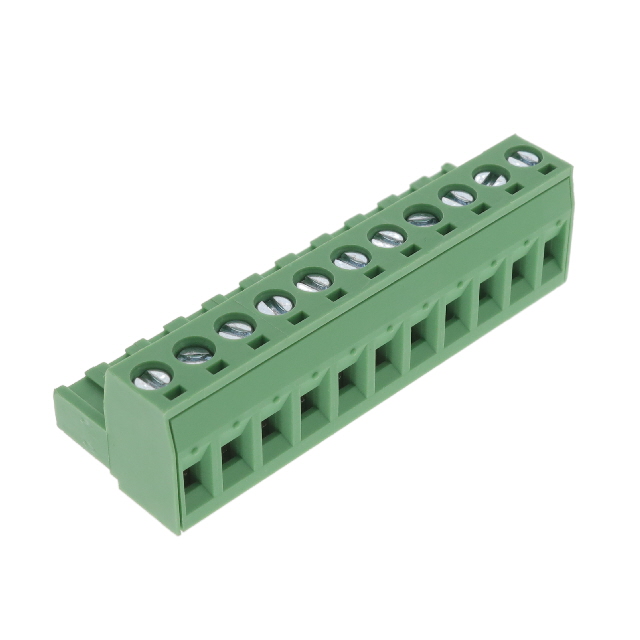

PLUGGABLE TERMINAL BLOCKS 5.08MM EURO PLUG RA GRN 11CKT

Deep-Dive with AI

Search across all available documentation for this part.

Documents39500-001 Prod Spec

0395305011

Active

Molex

PLUGGABLE TERMINAL BLOCKS 5.08MM EURO PLUG RA GRN 11CKT

Deep-Dive with AI

Documents39500-001 Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0395305011

Color	Green
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Housing Material	Polyamide (PA), Nylon
Insulation Height	0.591 in
Insulation Height	15 mm
Mounting Type	Free Hanging (In-Line)
Number of Levels	1
Number of Positions	11
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Positions Per Level	11
Screw Size	M3
Termination Style	Screw - Rising Cage Clamp
Torque - Screw	0.56 Nm
Torque - Screw	5 Lb-In
Type	Plug, Female Sockets
Voltage - UL	300 V
Wire Gauge or Range - AWG [Max]	26 AWG
Wire Gauge or Range - AWG [Min]	12 AWG
Wire Strip Length	5 mm

039530 Series

...

Part	Positions Per Level	Insulation Height	Insulation Height	Features	Voltage - UL	Number of Positions	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Screw Size	Color	Mounting Type	Wire Strip Length	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Pitch [x]	Pitch [x]	Termination Style	Type	Number of Levels	Contact Mating Finish	Torque - Screw	Torque - Screw	Housing Material
Molex 0395305218	18	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	18	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300715	15	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	15	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305011	11	0.591 in	15 mm		300 V	11	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305222	22	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	22 positions	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305518	18	0.591 in	15 mm		300 V	18	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305504	4	0.591 in	15 mm		300 V	4	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Gold	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305020	20	0.591 in	15 mm		300 V	20	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300122	22	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	22 positions	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395305021	21	0.591 in	15 mm		300 V	21	12 AWG	26 AWG	M3	Green	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon
Molex 0395300223	23	0.591 in	15 mm	Positions Stamped Retention Latches (Non-Wire Side)	300 V	23	12 AWG	26 AWG	M3	Black	Free Hanging (In-Line)	5 mm	-40 °C	115 °C	Copper Alloy	0.2 in	5.08 mm	Screw - Rising Cage Clamp	Plug Female Sockets	1	Tin	0.56 Nm	5 Lb-In	Polyamide (PA) Nylon

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 6.41
		10	$ 4.68
		25	$ 4.33
		50	$ 4.15
		100	$ 4.01
		250	$ 3.87
		500	$ 3.80
		1000	$ 3.75
Sager	N/A	720	$ 4.11
		1800	$ 3.48

Description

General part information

039530 Series

11 Position Terminal Block Plug, Female Sockets 0.200" (5.08mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

39500-001 Prod Spec

Datasheet
