CPMC7818

Active

Cinch Connectivity Solutions AIM-Cambridge

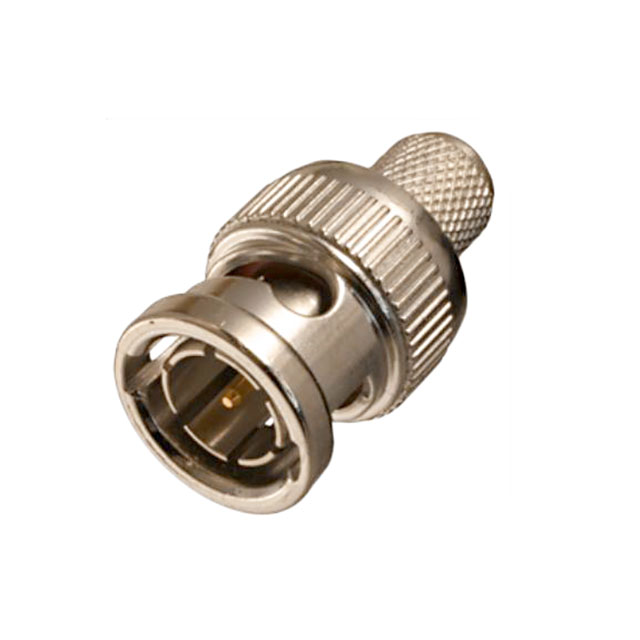

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Active

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	CPMC7818

Body Finish	Nickel
Body Material	Brass
Cable Group	AT&T 735A, Belden 8218
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	2 GHz
Housing Color	Silver
Impedance	75 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Shield Termination	Crimp

Part	Voltage Rating	Body Material	Cable Group	Impedance	Center Contact Material	Mounting Type	Frequency - Max [Max]	Body Finish	Housing Color	Center Contact Plating	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Number of Ports	Dielectric Material	Connector Style	Mating Cycles	Includes
Cinch Connectivity Solutions AIM-Cambridge CPMC-68-35	500 V	Brass	Belden 1505A Belden 734A	75 Ohms	Brass	Free Hanging (In-Line)	3 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-65 ░C	165 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC782	500 V	Brass	62 Belden 1505A RG-59	75 Ohms	Brass	Free Hanging (In-Line)	2 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-55 °C	85 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC-68-33	500 V	Brass	Belden 735A	75 Ohms	Brass	Free Hanging (In-Line)	3 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-65 ░C	165 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC7818		Brass	AT&T 735A Belden 8218	75 Ohms	Brass	Free Hanging (In-Line)	2 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp			Crimp	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500	1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 2.67

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
