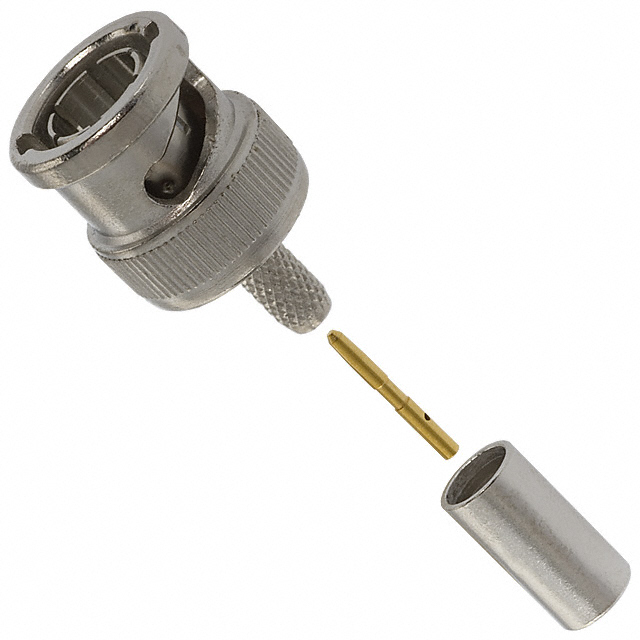

CPMC-68-33

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 75 OHM CRIMP

Search across all available documentation for this part.

Obsolete

Cinch Connectivity Solutions AIM-Cambridge

CONN BNC PLUG STR 75 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	CPMC-68-33

Body Finish	Nickel
Body Material	Brass
Cable Group	Belden 735A
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder, Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	3 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	500 V

Part	Voltage Rating	Body Material	Cable Group	Impedance	Center Contact Material	Mounting Type	Frequency - Max [Max]	Body Finish	Housing Color	Center Contact Plating	Connector Type	Shield Termination	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Fastening Type	Number of Ports	Dielectric Material	Connector Style	Mating Cycles	Includes
Cinch Connectivity Solutions AIM-Cambridge CPMC-68-35	500 V	Brass	Belden 1505A Belden 734A	75 Ohms	Brass	Free Hanging (In-Line)	3 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-65 ░C	165 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC782	500 V	Brass	62 Belden 1505A RG-59	75 Ohms	Brass	Free Hanging (In-Line)	2 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-55 °C	85 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC-68-33	500 V	Brass	Belden 735A	75 Ohms	Brass	Free Hanging (In-Line)	3 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp	-65 ░C	165 °C	Crimp Solder	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500
Cinch Connectivity Solutions AIM-Cambridge CPMC7818		Brass	AT&T 735A Belden 8218	75 Ohms	Brass	Free Hanging (In-Line)	2 GHz	Nickel	Silver	Gold	Male Pin Plug	Crimp			Crimp	Bayonet Lock	1	Polytetrafluoroethylene (PTFE)	BNC	500	1 Connector 1 Contact 1 Ferrule

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp or Solder

Technical documentation and resources
