FX18-60S-0.8SH(11)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] HIGH SPEED TRANSMISSION, 0.8MM PITCH FOR PCB CONNECTIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

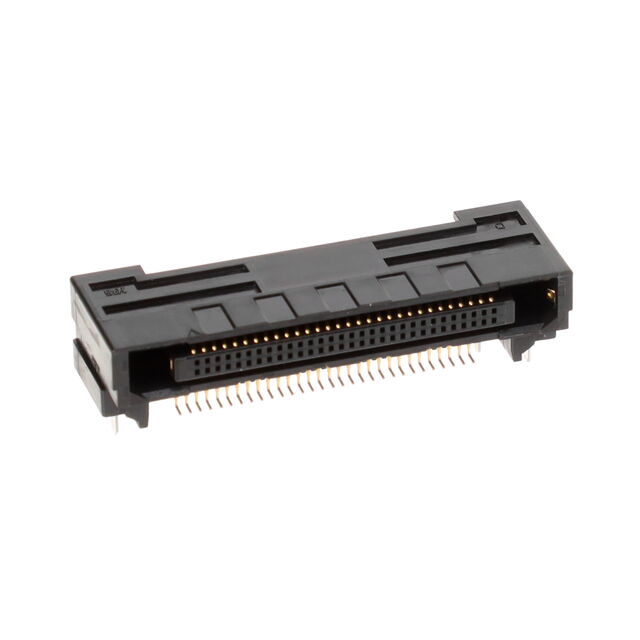

FX18-60S-0.8SH(11)

Active

Hirose Electric USA, Inc.

[FUNCTIONMAX ] HIGH SPEED TRANSMISSION, 0.8MM PITCH FOR PCB CONNECTIONS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX18-60S-0.8SH(11)

Connector Type	Receptacle, Center Strip Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board [z]	9.5 mm
Height Above Board [z]	0.374 in
Mounting Type	Surface Mount, Right Angle
Number of Positions	60
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

FX18 Series

Part	Height Above Board	Height Above Board	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	For Use With/Related Products	Accessory Type
Hirose Electric USA, Inc. FX18-140P-0.8SV	0.341 in	8.65 mm	140	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 20 mm
Hirose Electric USA, Inc. FX18-80S-0.8SV15(01)	0.451 in	11.45 mm	80	0.8 mm	0.031 in	2	Surface Mount	Center Strip Contacts Receptacle			Board Guide	Gold
Hirose Electric USA, Inc. FX18-140S-0.8SH			140	0.8 mm	0.031 in	2	Surface Mount Right Angle	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-60P-0.8SV(30)	0.341 in	8.65 mm	60	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts			Board Guide	Gold
Hirose Electric USA, Inc. FX18-140PS-0.8H15			140													FunctionMax™ FX18 Series	Spacer
Hirose Electric USA, Inc. FX18-60S-0.8SH(11)			60	0.8 mm	0.031 in	2	Surface Mount Right Angle	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-120P-0.8SV	0.341 in	8.65 mm	120	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 20 mm
Hirose Electric USA, Inc. FX18-40S-0.8SV15			40	0.8 mm	0.031 in	2	Surface Mount	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 25 mm	11.43 mm	0.45 in
Hirose Electric USA, Inc. FX18-120P-0.8SH			120	0.8 mm	0.031 in	2	Surface Mount Right Angle	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-100P-0.8SV(30)	0.341 in	8.65 mm	100	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts			Board Guide	Gold
