FX18-140P-0.8SV

Active

Hirose Electric USA, Inc.

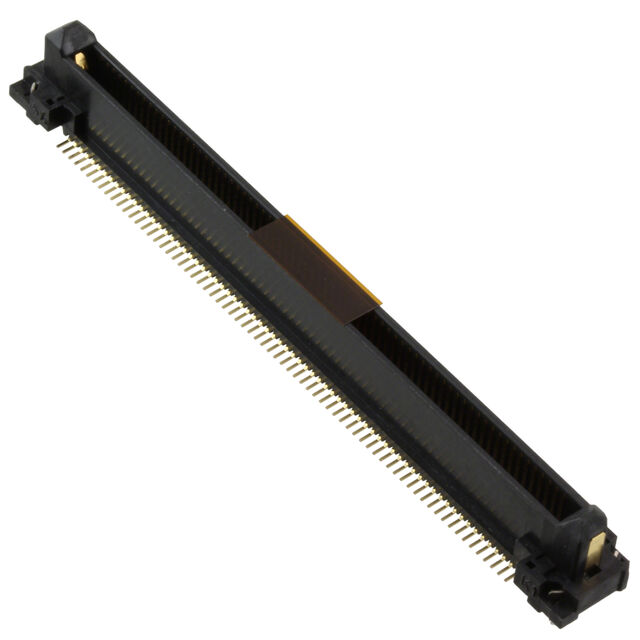

BOARD CONNECTOR, 140 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL

Deep-Dive with AI

Search across all available documentation for this part.

FX18-140P-0.8SV

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 140 CONTACT(S), 2 ROW(S), MALE, STRAIGHT, SURFACE MOUNT TERMINAL

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FX18-140P-0.8SV

Connector Type	Header, Outer Shroud Contacts
Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Board Guide
Height Above Board	0.341 in
Height Above Board	8.65 mm
Mated Stacking Heights	15 mm, 20 mm
Mounting Type	Surface Mount
Number of Positions	140
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

FX18 Series

Part	Height Above Board	Height Above Board	Number of Positions	Pitch [x]	Pitch [x]	Number of Rows	Mounting Type	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Features	Contact Finish	Mated Stacking Heights	Height Above Board [z]	Height Above Board [z]	For Use With/Related Products	Accessory Type
Hirose Electric USA, Inc. FX18-140P-0.8SV	0.341 in	8.65 mm	140	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 20 mm
Hirose Electric USA, Inc. FX18-80S-0.8SV15(01)	0.451 in	11.45 mm	80	0.8 mm	0.031 in	2	Surface Mount	Center Strip Contacts Receptacle			Board Guide	Gold
Hirose Electric USA, Inc. FX18-140S-0.8SH			140	0.8 mm	0.031 in	2	Surface Mount Right Angle	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-60P-0.8SV(30)	0.341 in	8.65 mm	60	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts			Board Guide	Gold
Hirose Electric USA, Inc. FX18-140PS-0.8H15			140													FunctionMax™ FX18 Series	Spacer
Hirose Electric USA, Inc. FX18-60S-0.8SH(11)			60	0.8 mm	0.031 in	2	Surface Mount Right Angle	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-120P-0.8SV	0.341 in	8.65 mm	120	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 20 mm
Hirose Electric USA, Inc. FX18-40S-0.8SV15			40	0.8 mm	0.031 in	2	Surface Mount	Center Strip Contacts Receptacle	4 Áin	0.1 Ám	Board Guide	Gold	15 mm 25 mm	11.43 mm	0.45 in
Hirose Electric USA, Inc. FX18-120P-0.8SH			120	0.8 mm	0.031 in	2	Surface Mount Right Angle	Header Outer Shroud Contacts	4 Áin	0.1 Ám	Board Guide	Gold		9.5 mm	0.374 in
Hirose Electric USA, Inc. FX18-100P-0.8SV(30)	0.341 in	8.65 mm	100	0.8 mm	0.031 in	2	Surface Mount	Header Outer Shroud Contacts			Board Guide	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.59
		10	$ 6.86
		25	$ 6.48
		40	$ 6.32
		80	$ 6.01
		240	$ 5.37
		440	$ 5.06
		960	$ 4.43

Description

General part information

FX18 Series

140 Position Connector Header, Outer Shroud Contacts Surface Mount Gold
