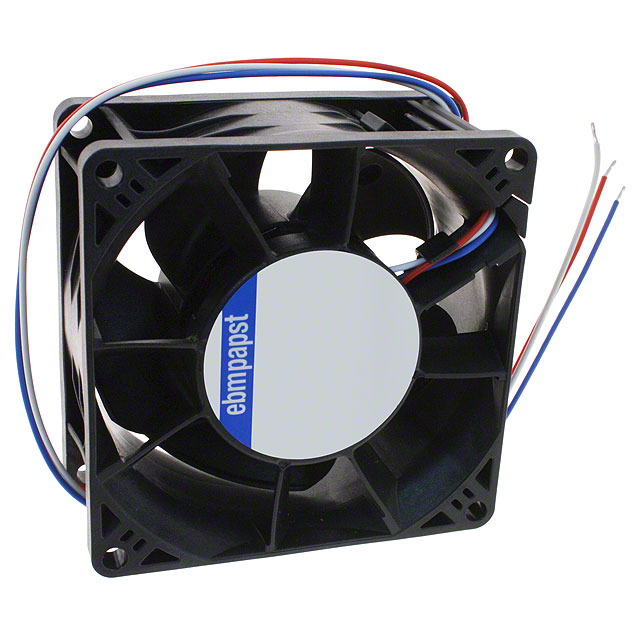

8214J/2H4
ActiveDC AXIAL FAN, 24 V, SQUARE, 80 MM, 38 MM, BALL BEARING, 131 CFM
Deep-Dive with AI
Search across all available documentation for this part.
8214J/2H4
ActiveDC AXIAL FAN, 24 V, SQUARE, 80 MM, 38 MM, BALL BEARING, 131 CFM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8214J/2H4 |
|---|---|
| Air Flow | 131 CFM |
| Air Flow | 3.67 mł/min |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach) |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 71 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 38 W |
| Size / Dimension [x] | 80 mm |
| Size / Dimension [y] | 80 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 27.6 VDC |
| Voltage Range [Min] | 12 VDC |
| Weight | 0.44 lb |
| Weight | 199.58 g |
| Width [y] | 38 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
8214J Series
The S-Force series DC Axial Fan with their extremely high blower capacity of up to 950m3/h and pressure build-up of up to 1200 Pascal are capable of dealing with the extreme heat load. If needed, these fans can produce up to 100% more output under full load and they work with a much broader delivery bandwidth. This makes them ideal for equipment and systems with a high density of components. The S-Force fans features intelligent motor features, they can be individually adapted for any application.
