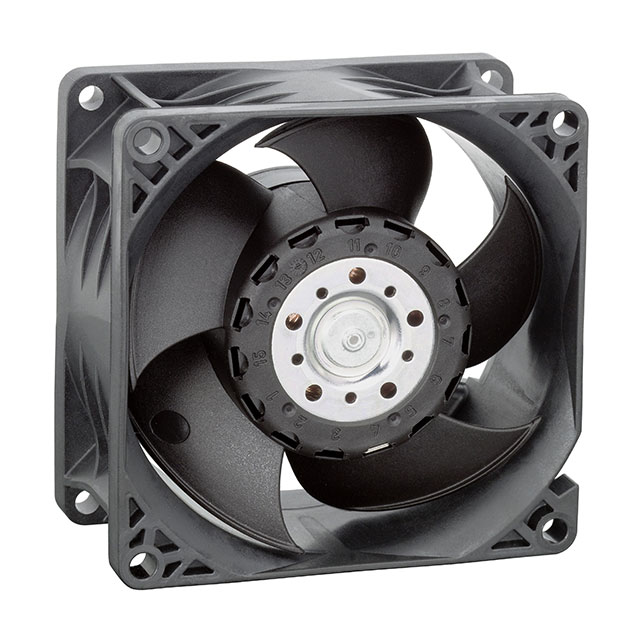

8214J/2H4P

Active

ebm-papst Inc.

FAN AXIAL 80MM BALL 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 80MM BALL 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	8214J/2H4P

Air Flow	129.4 CFM
Air Flow	3.62 m³/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.015 A
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	50000 Hrs
Noise	71 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	37 W
RPM	14000 RPM
Size / Dimension [x]	80 mm
Size / Dimension [y]	80 mm
Static Pressure	2.85 in H2O
Static Pressure	709.9 Pa
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	27.6 VDC
Voltage Range [Min]	12 VDC

Part	Power (Watts)	Features	Voltage - Rated	Operating Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Bearing Type	Width [y]	Material - Frame	Termination	Voltage Range [Max]	Voltage Range [Min]	Size / Dimension [y]	Size / Dimension [x]	Weight	Weight	Material - Blade	Fan Type	Noise	Air Flow	Air Flow	Lifetime @ Temp.	Static Pressure	Static Pressure	Current Rating (Amps)	Approval Agency	Operating Temperature [Max]	RPM
ebm-papst Inc. 8214J/2H4	38 W	Speed Sensor (Tach)	24 VDC	-10 °C	-10 °C	60 °C	60 °C	Ball	38 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	27.6 VDC	12 VDC	80 mm	80 mm	0.44 lb	199.58 g	Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	71 dB(A)	131 CFM	3.67 mł/min
ebm-papst Inc. 8214J/2H4P	37 W	PWM Control Speed Sensor (Tach)	24 VDC	-20 C	-20 °C	70 °C		Ball			4 Wire Leads	27.6 VDC	12 VDC	80 mm	80 mm				Tubeaxial	71 dB(A)	129.4 CFM	3.62 m³/min	50000 Hrs	2.85 in H2O	709.9 Pa	0.015 A	CE CSA UL VDE	70 °C	14000 RPM
ebm-papst Inc. 8214J/2N	10 W	Locked Rotor Protection Speed Sensor (Tach)	24 VDC	-20 C	-20 °C	70 °C		Ball	38 mm	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	3 Wire Leads	26.4 VDC	18 VDC	80 mm	80 mm			Fiberglass Reinforced Nylon Polyamide (PA)	Tubeaxial	55 dB	78 CFM	2.18 m³/min	62500 Hrs					70 °C	8400 RPM

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 80mm L x 80mm H Ball 129.4 CFM (3.62m³/min) 4 Wire Leads
