09300161520

Active

HARTING Technology Group

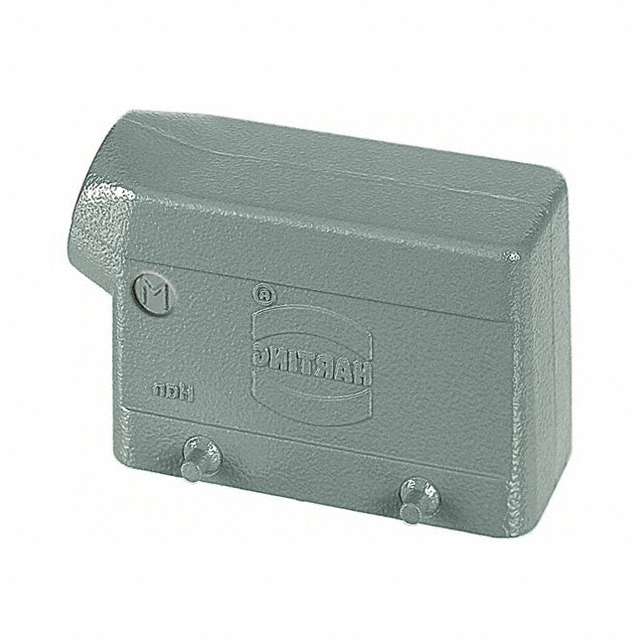

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09300161520

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, PG21 SIDE ENTRY, 4 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300161520

Connector Type	Hood
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (2) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	93.5 mm
Size / Dimension [x]	3.681 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	62.5 mm
Size / Dimension [z]	2.461 in
Style	Side Entry
Thread Size	PG21

09300161 Series

Part	Housing Finish	Housing Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Connector Type	Lock Location	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material	Features	Thread Size	Size / Dimension	Frame Type
HARTING Technology Group 09300161307	Powder Coated	Gray	118 mm	48.4 mm	1.906 in	4.646 in	1.189 in	30.2 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	16 B	IP65 IP67	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast
HARTING Technology Group 09300161290	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast	Feed Through	PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161520	Powder Coated	Gray	93.5 mm	43 mm	1.693 in	3.681 "	2.461 in	62.5 mm	Hood	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21
HARTING Technology Group 09300161703											16 B									Fixed Frame
HARTING Technology Group 09300161308	Powder Coated	Gray	118 mm	48.4 mm	1.906 in	4.646 in	1.232 in	31.3 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	16 B	IP65 IP67	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast	Cover
HARTING Technology Group 09300161230	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161260	Powder Coated	Gray	117 mm	57 mm	2.244 "	4.606 "	2.205 in	56 mm	Base - Box Mount	Locking Clip (2) on Hood	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21
HARTING Technology Group 09300161750	Powder Coated	Gray	93.5 mm	43 mm	1.693 in	3.681 "	1.866 "	47.4 mm	Hood - Coupling	Locking Clip (1) on Hood Top	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast	Cable to Cable	PG21
HARTING Technology Group 09300161250	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161301	Powder Coated	Gray							Base - Panel Mount	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 28.54
		10	$ 20.95
		25	$ 18.77
		50	$ 17.36
		100	$ 16.12
		250	$ 14.72
		500	$ 13.80
Newark	Each	1	$ 19.94
		5	$ 18.88
		10	$ 17.81
		25	$ 16.78
		50	$ 15.57
		100	$ 14.62

Description

General part information

09300161 Series

The 09300161520 is a Han B® Side Entry Hood with polycarbonate + stainless steel double locking lever, size-16B, RAL7037 (gray) powder-coated die-cast aluminum body.
