09300161307

Active

HARTING Technology Group

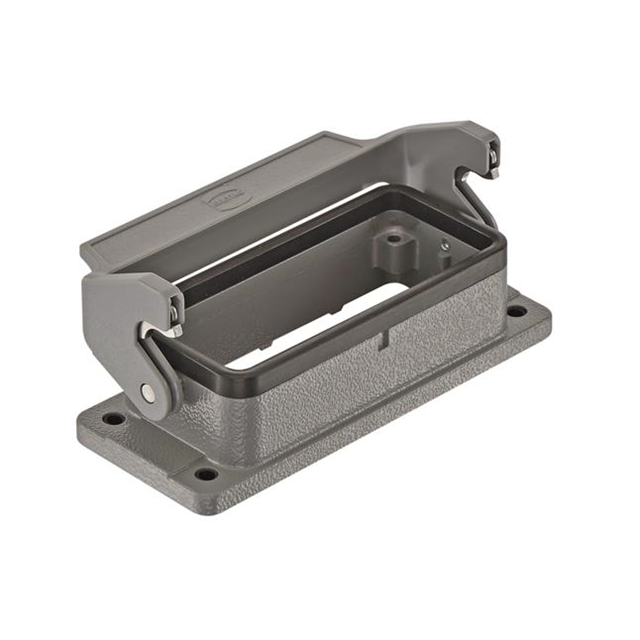

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

09300161307

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM BODY, 1 LEVER, 16B

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	09300161307

Connector Type	Base - Panel Mount
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP67, IP65
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	16 B
Size / Dimension [x]	118 mm
Size / Dimension [x]	4.646 in
Size / Dimension [y]	48.4 mm
Size / Dimension [y]	1.906 in
Size / Dimension [z]	1.189 in
Size / Dimension [z]	30.2 mm
Style	Bottom Entry

09300161 Series

Part	Housing Finish	Housing Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Connector Type	Lock Location	Size	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Style	Housing Material	Features	Thread Size	Size / Dimension	Frame Type
HARTING Technology Group 09300161307	Powder Coated	Gray	118 mm	48.4 mm	1.906 in	4.646 in	1.189 in	30.2 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	16 B	IP65 IP67	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast
HARTING Technology Group 09300161290	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast	Feed Through	PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161520	Powder Coated	Gray	93.5 mm	43 mm	1.693 in	3.681 "	2.461 in	62.5 mm	Hood	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21
HARTING Technology Group 09300161703											16 B									Fixed Frame
HARTING Technology Group 09300161308	Powder Coated	Gray	118 mm	48.4 mm	1.906 in	4.646 in	1.232 in	31.3 mm	Base - Panel Mount	Locking Clip (1) on Base Bottom	16 B	IP65 IP67	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast	Cover
HARTING Technology Group 09300161230	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161260	Powder Coated	Gray	117 mm	57 mm	2.244 "	4.606 "	2.205 in	56 mm	Base - Box Mount	Locking Clip (2) on Hood	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21
HARTING Technology Group 09300161750	Powder Coated	Gray	93.5 mm	43 mm	1.693 in	3.681 "	1.866 "	47.4 mm	Hood - Coupling	Locking Clip (1) on Hood Top	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast	Cable to Cable	PG21
HARTING Technology Group 09300161250	Powder Coated	Gray			2.244 "	4.606 "	2.197 "		Base - Box Mount	Locking Clip (1) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Side Entry	Aluminum Die Cast		PG21	55.8 mm 57 mm 117 mm
HARTING Technology Group 09300161301	Powder Coated	Gray							Base - Panel Mount	Locking Clip (2) on Base Bottom	16 B	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Bottom Entry	Aluminum Die Cast

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 53.95
		10	$ 40.21
		25	$ 36.25
		50	$ 33.67
		100	$ 31.42
		250	$ 28.85
Newark	Each	1	$ 40.11
		10	$ 36.37
		25	$ 34.91
		50	$ 32.63
		100	$ 31.38
		250	$ 29.72

Description

General part information

09300161 Series

Base - Panel Mount Connector Bottom Entry 16B IP65/IP67 - Dust Tight, Water Resistant, Waterproof
