SCNBN-J1175-SORPM
ActiveSuntsu Electronics, Inc

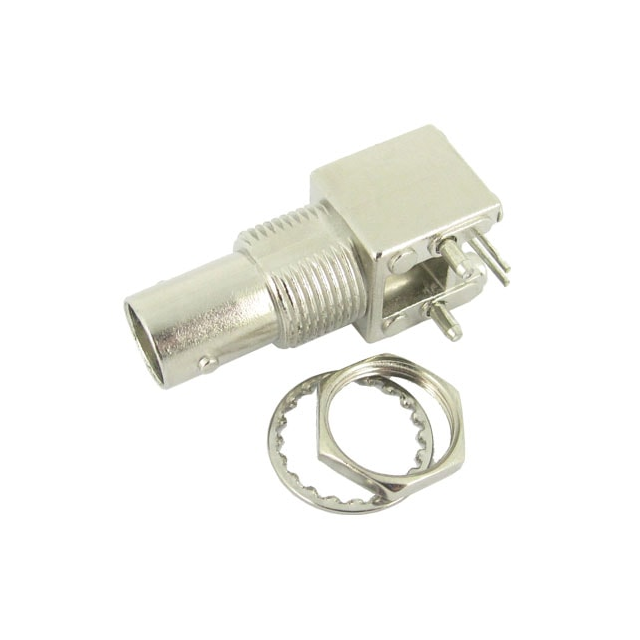

CONN BNC JACK R/A 50 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNBN-J1175-SORPM
ActiveSuntsu Electronics, Inc
CONN BNC JACK R/A 50 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCNBN-J1175-SORPM |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Gold |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Board Guide |
| Frequency - Max [Max] | 1 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Right Angle, Panel Mount |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.53 | |
| 10 | $ 2.17 | |||
| 50 | $ 1.81 | |||
| 100 | $ 1.35 | |||
Description
General part information
SCNBN-J1175 Series
BNC Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole, Right Angle Solder
