SCNBN-J1175-SOSPM
ActiveSuntsu Electronics, Inc

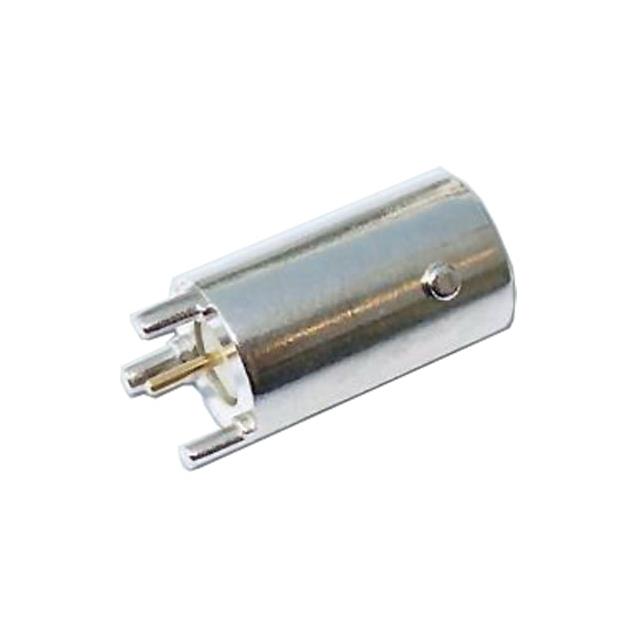

CONN BNC JACK R/A 75 OHM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SCNBN-J1175-SOSPM
ActiveSuntsu Electronics, Inc
CONN BNC JACK R/A 75 OHM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SCNBN-J1175-SOSPM |
|---|---|
| Body Finish | Nickel |
| Body Material | Zinc |
| Center Contact Material | Brass |
| Center Contact Plating | Nickel |
| Connector Style | BNC |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Fastening Type | Bayonet Lock |
| Features | Board Guide |
| Frequency - Max [Max] | 4 GHz |
| Housing Color | Silver |
| Impedance | 75 Ohms |
| Mounting Type | Through Hole |
| Number of Ports | 1 |
| Shield Termination | Solder |
SCNBN-J1175 Series
| Part | Connector Type | Impedance | Mounting Type | Mounting Feature | Number of Ports | Center Contact Plating | Center Contact Material | Body Finish | Fastening Type | Connector Style | Frequency - Max [Max] | Body Material | Contact Termination | Housing Color | Shield Termination | Features | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Suntsu Electronics, Inc | Female Socket Jack | 75 Ohms | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | 1 | Nickel | Brass | Nickel | Bayonet Lock | BNC | 4 GHz | Zinc | Solder | Silver | Solder | ||
Suntsu Electronics, Inc | Female Socket Jack | 75 Ohms | Panel Mount Right Angle Through Hole | Bulkhead - Front Side Nut | 1 | Gold | Phosphor Bronze | Nickel | Bayonet Lock | BNC | 1 GHz | Zinc | Solder | Silver | Solder | Board Guide | 500 V |
Suntsu Electronics, Inc | Female Socket Jack | 75 Ohms | Board Edge End Launch Panel Mount | Bulkhead - Front Side Nut | 1 | Nickel | Brass | Nickel | Bayonet Lock | BNC | 4 GHz | Zinc | Solder | Silver | Solder | ||
Suntsu Electronics, Inc | Female Socket Jack | 75 Ohms | Through Hole | 1 | Nickel | Brass | Nickel | Bayonet Lock | BNC | 4 GHz | Zinc | Solder | Silver | Solder | Board Guide |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 4.12 | |
| 10 | $ 3.74 | |||
| 50 | $ 3.46 | |||
| 100 | $ 3.30 | |||
| 500 | $ 2.81 | |||
Description
General part information
SCNBN-J1175 Series
BNC Connector Jack, Female Socket 75 Ohms Through Hole Solder
