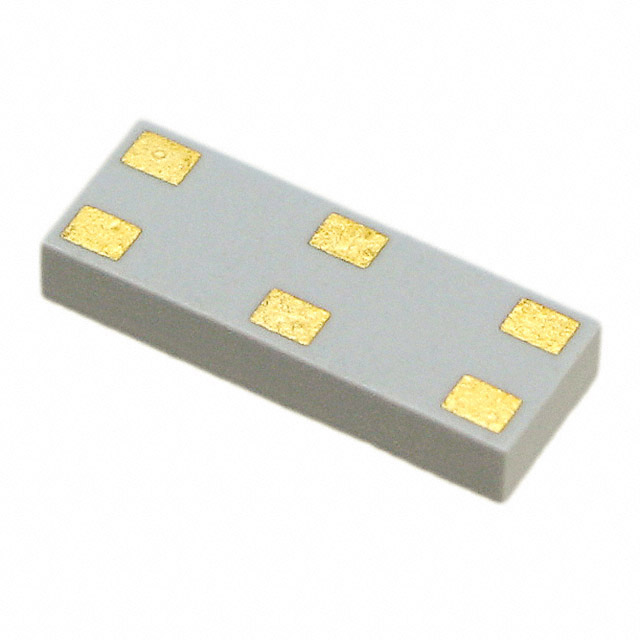

M830110

Obsolete

Kyocera AVX

RF ANT 1.561GHZ/1.575GHZ CHIP

Search across all available documentation for this part.

Obsolete

Kyocera AVX

RF ANT 1.561GHZ/1.575GHZ CHIP

Technical Specifications

Parameters and characteristics for this part

Part	Type	Supplied Contents	For Use With/Related Products	Frequency	Mounting Type	RF Family/Standard	Power - Max [Max]	Frequency (Center/Band)	Gain	Termination	Height (Max) [Max]	Height (Max) [Max]	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Applications	Number of Bands
Kyocera AVX M830110-01	Antenna	Board(s)	M830110	1.575 GHz
Kyocera AVX M830110					Surface Mount	Navigation	500 mW	1.561 GHz 1.575 GHz 1.602 GHz	1.78 dBi	Solder	0.051 "	1.3 mm	1.7	Chip	2 GHz	1 GHz	UHF	1.602 GHz	1.561 GHz	Beidou GLONASS GPS	1
Kyocera AVX M830110-10K					Surface Mount	Navigation	500 mW	1.561 GHz 1.575 GHz 1.602 GHz	1.78 dBi	Solder	0.051 "	1.3 mm	1.7	Chip	2 GHz	1 GHz	UHF	1.602 GHz	1.561 GHz	Beidou GLONASS GPS	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

RF ANTENNA Beidou, GLONASS, GPS Chip Solder Surface Mount

Technical documentation and resources
