M830110-01

Obsolete

Kyocera AVX

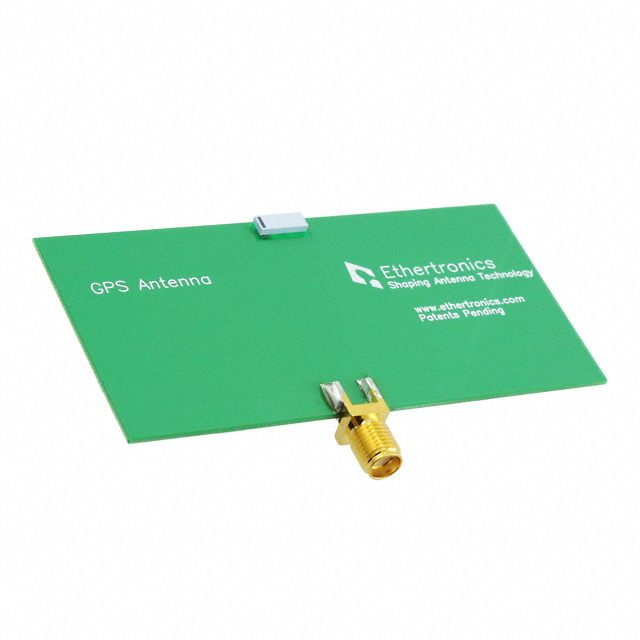

EVAL BOARD FOR M830110

Search across all available documentation for this part.

Obsolete

Kyocera AVX

EVAL BOARD FOR M830110

Technical Specifications

Parameters and characteristics for this part

Specification	M830110-01

For Use With/Related Products	M830110
Frequency	1.575 GHz
Supplied Contents	Board(s)
Type	Antenna

Part	Type	Supplied Contents	For Use With/Related Products	Frequency	Mounting Type	RF Family/Standard	Power - Max [Max]	Frequency (Center/Band)	Gain	Termination	Height (Max) [Max]	Height (Max) [Max]	VSWR	Antenna Type	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Frequency Range [Max]	Frequency Range [Min]	Applications	Number of Bands
Kyocera AVX M830110-01	Antenna	Board(s)	M830110	1.575 GHz
Kyocera AVX M830110					Surface Mount	Navigation	500 mW	1.561 GHz 1.575 GHz 1.602 GHz	1.78 dBi	Solder	0.051 "	1.3 mm	1.7	Chip	2 GHz	1 GHz	UHF	1.602 GHz	1.561 GHz	Beidou GLONASS GPS	1
Kyocera AVX M830110-10K					Surface Mount	Navigation	500 mW	1.561 GHz 1.575 GHz 1.602 GHz	1.78 dBi	Solder	0.051 "	1.3 mm	1.7	Chip	2 GHz	1 GHz	UHF	1.602 GHz	1.561 GHz	Beidou GLONASS GPS	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

- M830110 Antenna 1.575GHz Evaluation Board

Technical documentation and resources
