FA1-NZRP-PCB-8A - FA1-NZRP-PCB-8A

FA1-NZRP-PCB-8A

Active
Amphenol RF

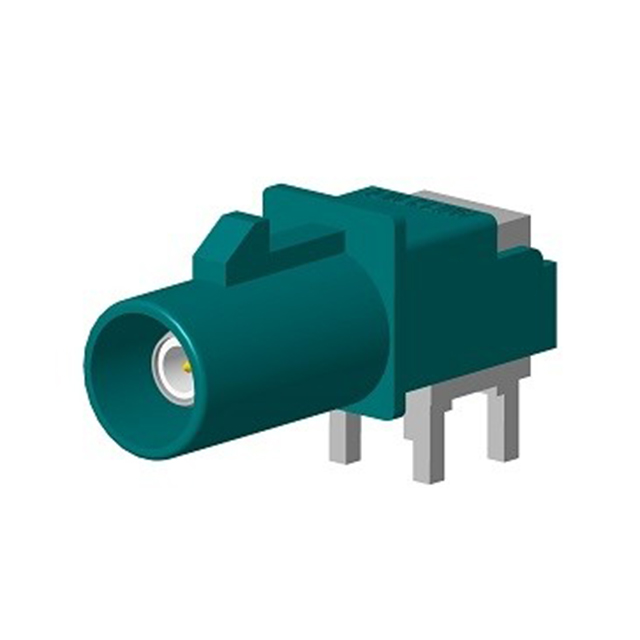

CONNECTOR: FAKRA; SOCKET; MALE; FAKRA GENERATION 1; ANGLED 90°

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFAKRA SMB Connector Catalog
FA1-NZRP-PCB-8A - FA1-NZRP-PCB-8A

FA1-NZRP-PCB-8A

Active
Amphenol RF

CONNECTOR: FAKRA; SOCKET; MALE; FAKRA GENERATION 1; ANGLED 90°

Deep-Dive with AI

DocumentsFAKRA SMB Connector Catalog

Technical Specifications

Parameters and characteristics for this part

SpecificationFA1-NZRP-PCB-8A
Body FinishTin
Body MaterialZinc Die Cast
Center Contact MaterialBrass
Center Contact PlatingGold
Connector StyleSMB, Fakra
Connector TypeMale Pin, Plug
Contact TerminationSolder
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Fastening TypeLocking Ramp
FeaturesCode Z
Frequency - Max [Max]2.5 GHz
Impedance50 Ohms
Mounting TypeThrough Hole, Right Angle
Number of Ports1
Operating Temperature [Max]125 °C
Operating Temperature [Min]-65 ░C
Shield TerminationSolder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 4.58
10$ 4.16
25$ 3.94
50$ 3.85
100$ 3.67
250$ 3.21
500$ 3.12
1000$ 2.66
2500$ 2.48
TMEN/A 250$ 4.41
500$ 4.04

Description

General part information

fakra-generation-1 Series

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder

Documents

Technical documentation and resources

FAKRA SMB Connector Catalog

Datasheet
