FA1-NZRP-PCB-9

Obsolete

Amphenol RF

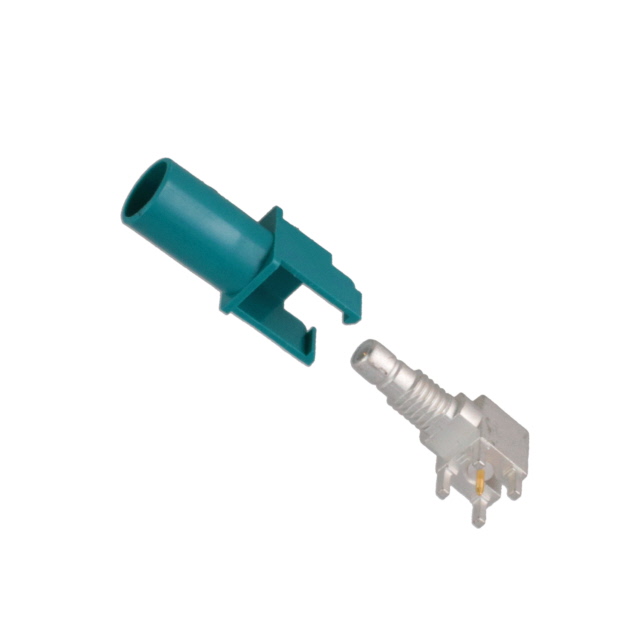

CONN FAKRA PLUG R/A 50 OHM PCB

Search across all available documentation for this part.

Obsolete

Amphenol RF

CONN FAKRA PLUG R/A 50 OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	FA1-NZRP-PCB-9

Body Finish	Tin
Body Material	Zinc Die Cast
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMB, Fakra
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Locking Ramp
Features	Code Z
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Includes	1 Connector, 1 Housing
Insertion Loss	0.3 dB
Mounting Type	Through Hole, Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Includes	Connector Type	Center Contact Material	Body Finish	Connector Style	Contact Termination	Dielectric Material	Insertion Loss	Shield Termination	Center Contact Plating	Mounting Type	Number of Ports	Features	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Body Material	Impedance	Housing Color
Amphenol RF FA1-NZRP-PCB-8	1 Connector 1 Housing	Male Pin Plug	Brass	Tin	Fakra SMB	Solder	Polytetrafluoroethylene (PTFE)	0.3 dB	Solder	Gold	Through Hole Right Angle	1	Code Z	Locking Ramp	125 °C	-65 ░C	6000 MHz	Zinc Die Cast	50 Ohms
Amphenol RF FA1-NZRP-PCB-9	1 Connector 1 Housing	Male Pin Plug	Brass	Tin	Fakra SMB	Solder	Polytetrafluoroethylene (PTFE)	0.3 dB	Solder	Gold	Through Hole Right Angle	1	Code Z	Locking Ramp	125 °C	-65 ░C	6000 MHz	Zinc Die Cast	50 Ohms
Amphenol RF FA1-NZRP-PCB-8A		Male Pin Plug	Brass	Tin	Fakra SMB	Solder	Polytetrafluoroethylene (PTFE)		Solder	Gold	Through Hole Right Angle	1	Code Z	Locking Ramp	125 °C	-65 ░C	2.5 GHz	Zinc Die Cast	50 Ohms
Amphenol RF FA1-NHRP-PCBT10		Male Pin Plug	Brass	Tin	Fakra SMB	Solder	Polytetrafluoroethylene (PTFE)		Solder	Gold	Through Hole Right Angle	1	Code H	Locking Ramp	100 °C	-40 °C	6000 MHz	Zinc Die Cast	50 Ohms	Heather Violet

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMB, Fakra Connector Plug, Male Pin 50 Ohms Through Hole, Right Angle Solder
