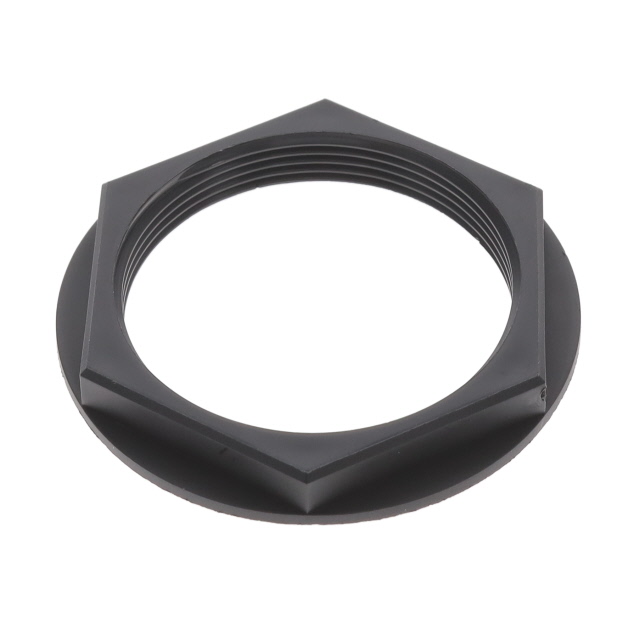

192900-0487

Active

ITT Cannon, LLC

CONNECTOR ACCESSORIES SPARE JAM NUT SHELL SIZE 24 PACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

192900-0487

Active

ITT Cannon, LLC

CONNECTOR ACCESSORIES SPARE JAM NUT SHELL SIZE 24 PACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192900-0487

Accessory Type	Hex Nut
Color	Black
For Use With/Related Products	Trident Neptune Jam Nut Receptacles
Shell Size - Insert	24

19290 Series

Part	Contact Type	Fastening Type	Includes	Material Flammability Rating	Ingress Protection	Housing Color	Type	Note	Shielding	Insert Material	Shell Size - Insert	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Connector Type	Mounting Type	Features	Mounting Feature	Color	Shell Size - Insert	Accessory Type	For Use With/Related Products	Cable Exit	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]
ITT Cannon, LLC 192900-0550	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0428	4 32	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0022
ITT Cannon, LLC 192900-0564	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	16-0213	15	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0548	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0048	48	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0481	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 O-Ring 2 Nuts	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0048	48	105 ░C	-55 °C	Circular	Receptacle Housing			Bulkhead - Front Side Nut
ITT Cannon, LLC 192900-0324	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 O-Ring	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	14-0012	12	105 ░C	-55 °C	Circular	Receptacle Housing			Flange
ITT Cannon, LLC 192900-0057	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black Silver	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	16-0019	19	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0487																				Black	24	Hex Nut	Trident Neptune Jam Nut Receptacles
ITT Cannon, LLC 192900-0323	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut 1 O-Ring	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	14-0012	12	105 ░C	-55 °C	Circular	Receptacle Housing			Flange
ITT Cannon, LLC 192900-0639			1 Backshell 2 Screws 3 Clamp Bars				Backshell Cable Clamp		Unshielded									Clamp Screws		Black	10		Discrete Wires or Jacketed Cables	180 °	Plastic	0.826 in	20.98 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 4.44
		10	$ 4.04
		25	$ 3.82
		50	$ 3.73
		100	$ 3.56
		300	$ 3.11
		500	$ 3.02
		1000	$ 2.58
		2500	$ 2.40

Description

General part information

19290 Series

Connector Hex Nut 24 Black
