192900-0057

Active

ITT Cannon, LLC

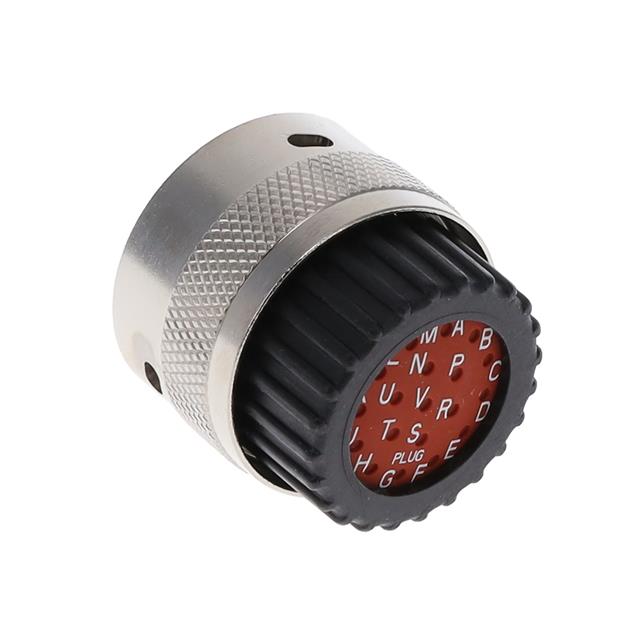

CIRCULAR CONN, PLUG, 19POS, CRIMP ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

192900-0057

Active

ITT Cannon, LLC

CIRCULAR CONN, PLUG, 19POS, CRIMP ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	192900-0057

Connector Type	Plug Housing
Contact Shape	Circular
Contact Type	Crimp and Solder Cup
Fastening Type	Detent Lock
Features	Coupling Nut
Housing Color	Black, Silver
Includes	1 Grommet, 1 Nut, 1 Connector
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Nylon, Polyamide (PA)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	19
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size - Insert	16-0019
Shielding	Unshielded
Type	For Female Sockets

19290 Series

Part	Contact Type	Fastening Type	Includes	Material Flammability Rating	Ingress Protection	Housing Color	Type	Note	Shielding	Insert Material	Shell Size - Insert	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Contact Shape	Connector Type	Mounting Type	Features	Mounting Feature	Color	Shell Size - Insert	Accessory Type	For Use With/Related Products	Cable Exit	Material	Diameter - Outside [diameter]	Diameter - Outside [diameter]
ITT Cannon, LLC 192900-0550	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0428	4 32	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0022
ITT Cannon, LLC 192900-0564	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	16-0213	15	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0548	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0048	48	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0481	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 O-Ring 2 Nuts	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	24-0048	48	105 ░C	-55 °C	Circular	Receptacle Housing			Bulkhead - Front Side Nut
ITT Cannon, LLC 192900-0324	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 O-Ring	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	14-0012	12	105 ░C	-55 °C	Circular	Receptacle Housing			Flange
ITT Cannon, LLC 192900-0057	Crimp and Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut	UL94 V-0	IP67 - Dust Tight Waterproof	Black Silver	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	16-0019	19	105 ░C	-55 °C	Circular	Plug Housing	Free Hanging (In-Line)	Coupling Nut
ITT Cannon, LLC 192900-0487																				Black	24	Hex Nut	Trident Neptune Jam Nut Receptacles
ITT Cannon, LLC 192900-0323	Crimp Solder Solder Cup	Detent Lock	1 Connector 1 Grommet 1 Nut 1 O-Ring	UL94 V-0	IP67 - Dust Tight Waterproof	Black	For Female Sockets	Contacts Not Included	Unshielded	Nylon Polyamide (PA)	14-0012	12	105 ░C	-55 °C	Circular	Receptacle Housing			Flange
ITT Cannon, LLC 192900-0639			1 Backshell 2 Screws 3 Clamp Bars				Backshell Cable Clamp		Unshielded									Clamp Screws		Black	10		Discrete Wires or Jacketed Cables	180 °	Plastic	0.826 in	20.98 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.03
		10	$ 21.91
Newark	Each	1	$ 33.66
		5	$ 29.50
		10	$ 28.46
		25	$ 26.53
		50	$ 24.93
		100	$ 24.45
		250	$ 23.99

Description

General part information

19290 Series

19 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
