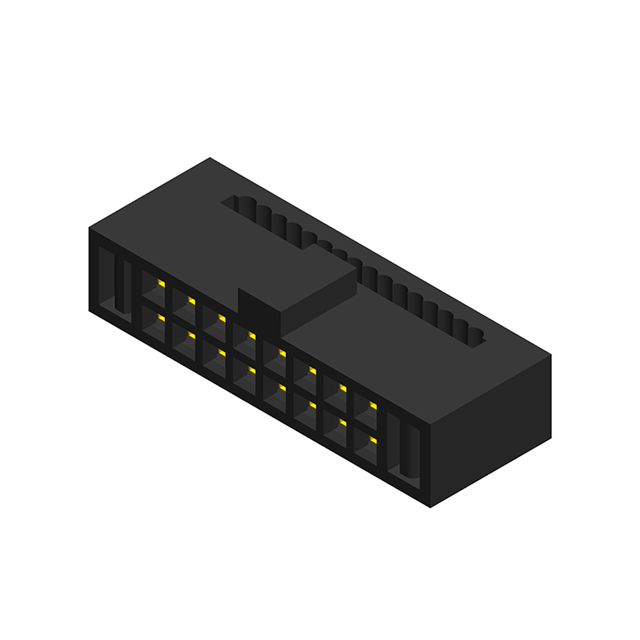

3230-16-0102-00
ActiveCnC Tech, LLC
CONN SOCKET 16POS IDC GOLD
Deep-Dive with AI
Search across all available documentation for this part.
3230-16-0102-00
ActiveCnC Tech, LLC
CONN SOCKET 16POS IDC GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 3230-16-0102-00 |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket |
| Contact Finish | Gold |
| Contact Finish Thickness | Flash |
| Contact Type | Female Socket |
| Features | Polarizing Key, Feed Through |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 16 |
| Number of Rows | 2 |
| Pitch [x] | 0.05 in |
| Pitch [x] | 1.27 mm |
| Row Spacing | 1.27 mm |
| Row Spacing | 0.05 in |
| Wire Type | Ribbon Cable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.35 | |
| 10 | $ 1.14 | |||
| 25 | $ 1.09 | |||
| 40 | $ 1.07 | |||
| 80 | $ 1.02 | |||
| 230 | $ 0.93 | |||
| 440 | $ 0.84 | |||
| 945 | $ 0.74 | |||
| 2400 | $ 0.67 | |||
Description
General part information
3230-16 Series
16 Position Rectangular Socket Connector IDC Gold
