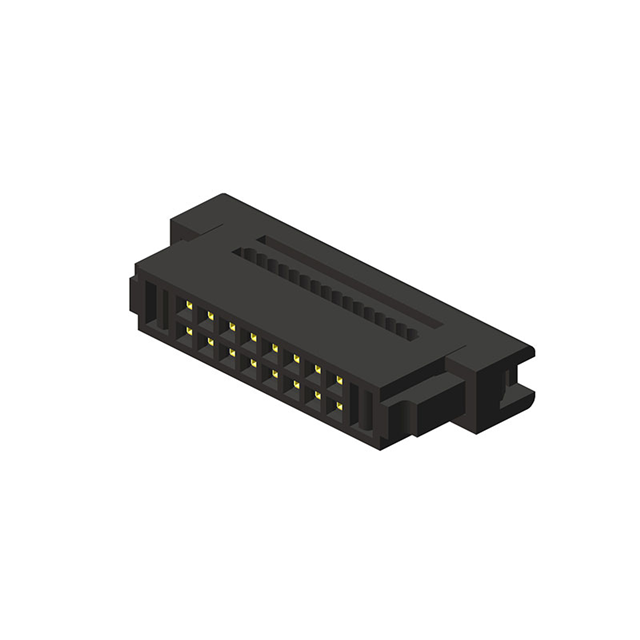

3230-16-0104-00

Active

CnC Tech, LLC

CONN SOCKET 16POS IDC GOLD

Search across all available documentation for this part.

Active

CnC Tech, LLC

CONN SOCKET 16POS IDC GOLD

Technical Specifications

Parameters and characteristics for this part

Part	Contact Finish Thickness	Connector Type	Number of Rows	Row Spacing	Row Spacing	Number of Positions	Contact Finish	Features	Contact Type	Mounting Type	Wire Type	Cable Termination	Pitch [x]	Pitch [x]
CnC Tech, LLC 3230-16-0103-00	Flash	Socket	2	1.27 mm	0.05 in	16	Gold	Feed Through Polarizing Key Strain Relief	Female Socket	Free Hanging (In-Line)	Ribbon Cable	IDC	0.05 in	1.27 mm
CnC Tech, LLC 3230-16-0102-00	Flash	Socket	2	1.27 mm	0.05 in	16	Gold	Feed Through Polarizing Key	Female Socket	Free Hanging (In-Line)	Ribbon Cable	IDC	0.05 in	1.27 mm
CnC Tech, LLC 3230-16-0101-00	Flash	Socket	2	1.27 mm	0.05 in	16	Gold	Feed Through	Female Socket	Free Hanging (In-Line)	Ribbon Cable	IDC	0.05 in	1.27 mm
CnC Tech, LLC 3230-16-0104-00	Flash	Socket	2	1.27 mm	0.05 in	16	Gold	Feed Through Strain Relief	Female Socket	Free Hanging (In-Line)	Ribbon Cable	IDC	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Rectangular Socket Connector IDC Gold
