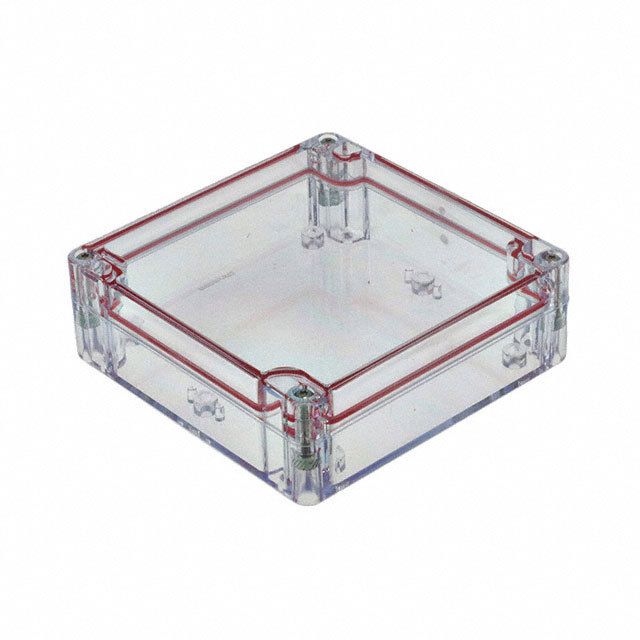

RB55P06C10C

Active

Serpac

PLASTIC ENCLOSURE, WATERTIGHT, JUNCTION BOX, POLYCARBONATE, 40.39 MM, 120 MM, 120 MM, IP67

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RB55P06C10C

Active

Serpac

PLASTIC ENCLOSURE, WATERTIGHT, JUNCTION BOX, POLYCARBONATE, 40.39 MM, 120 MM, 120 MM, IP67

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P06C10C

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Clear
Container Type	Box
Design	Cover Included
Height [diameter]	1.59 in
Height [diameter]	40.39 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

RB55P06C Series

Part	Design	Container Type	Thickness	Thickness	Material Flammability Rating	Ratings	Area (L x W)	Area (L x W)	Color	Height [z]	Height [z]	Material	Height [diameter]	Height [diameter]	Area (L x W)
Serpac RB55P06C28C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28G	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear Cover/Door Gray	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C16C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	22.3 in˛		Clear	2.17 in	55.12 mm	Plastic Polycarbonate			144 cm˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 23.78
		5	$ 19.11
		10	$ 18.30
		25	$ 17.72
		50	$ 17.48
		100	$ 17.34
		250	$ 17.23
		500	$ 17.19
Newark	Each	1	$ 19.84
		10	$ 16.86
		25	$ 15.28
		50	$ 14.08

Description

General part information

RB55P06C Series

The RB55P06C10C from Serpac is a polycarbonate watertight electronic (junction) enclosure. It is made of UV stabilized polycarbonate (UL 94 V-0) and meets IP67 and NEMA 4X, 12, 13 rating.
