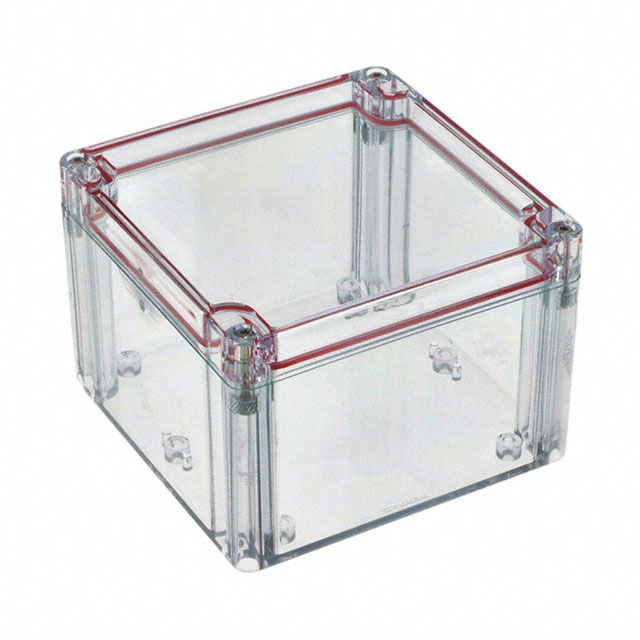

RB55P06C28C

Active

Serpac

BOX PLASTIC CLEAR

Search across all available documentation for this part.

Active

Serpac

BOX PLASTIC CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	RB55P06C28C

Area (L x W)	144 cm²
Area (L x W)	22.3 in²
Color	Clear
Container Type	Box
Design	Cover Included
Height [z]	3.35 in
Height [z]	85.09 mm
Material	Plastic, Polycarbonate
Material Flammability Rating	UL94 V-0
Ratings	IP67, NEMA 4
Thickness	0.12 in
Thickness	3.05 mm

Part	Design	Container Type	Thickness	Thickness	Material Flammability Rating	Ratings	Area (L x W)	Area (L x W)	Color	Height [z]	Height [z]	Material	Height [diameter]	Height [diameter]	Area (L x W)
Serpac RB55P06C28C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C10B	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Black Clear Cover/Door			Plastic Polycarbonate	1.59 in	40.39 mm
Serpac RB55P06C28G	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	144 cm²	22.3 in²	Clear Cover/Door Gray	3.35 in	85.09 mm	Plastic Polycarbonate
Serpac RB55P06C16C	Cover Included	Box	0.12 in	3.05 mm	UL94 V-0	IP67 NEMA 4	22.3 in˛		Clear	2.17 in	55.12 mm	Plastic Polycarbonate			144 cm˛

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Box Plastic, Polycarbonate Clear Cover Included X 3.350" (85.09mm)
