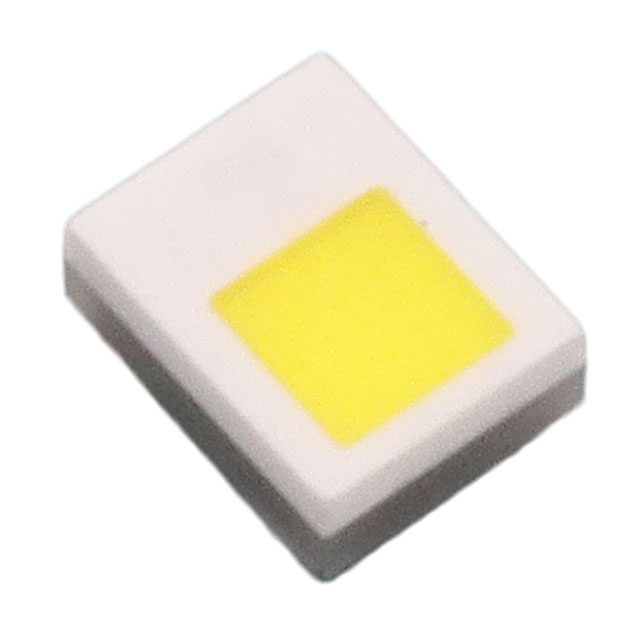

KW CELNM1.TG-Z5NF6-EBVFFCBB46-15B3-A-S

LTB

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Search across all available documentation for this part.

LTB

ams-OSRAM USA INC.

LED OSLON WHITE SMD

Technical Specifications

Parameters and characteristics for this part

Specification	KW CELNM1.TG-Z5NF6-EBVFFCBB46-15B3-A-S

Color	White
Current - Max [Max]	1.5 A
Current - Test	1 A
Flux @ 25°C, Current - Test	374 lm
Flux @ 25°C, Current - Test [Min]	297 lm
Height - Seated (Max) [Max]	0.77 mm
Height - Seated (Max) [Max]	0.03 in
Lumens/Watt @ Current - Test	125 lm/W
Mounting Type	Surface Mount
Package / Case	2-SMD, No Lead Exposed Pad
Size / Dimension [x]	0.075 in
Size / Dimension [x]	1.9 mm
Size / Dimension [y]	1.5 mm
Size / Dimension [y]	0.059 "
Supplier Device Package	SMD
Thermal Resistance of Package [diameter]	4.6 °C/W
Viewing Angle	120 °
Voltage - Forward (Vf) (Typ)	3 V

Part	Viewing Angle	Flux @ 25°C, Current - Test	Package / Case	Color	Supplier Device Package	Current - Max [Max]	Thermal Resistance of Package [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Voltage - Forward (Vf) (Typ)	Mounting Type	Current - Test	Lumens/Watt @ Current - Test	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Flux @ 25°C, Current - Test [Min]
ams-OSRAM USA INC. KW CELNM2.TK-S2S8-4L07M0-2686-S	120 °	433 lm	2-SMD No Lead Exposed Pad	White	SMD	1.5 A	4.6 °C/W	0.77 mm	0.03 in	3.1 V	Surface Mount	1 A	140 lm/W	0.075 in	1.5 mm	1.9 mm	0.059 "
ams-OSRAM USA INC. KW CELNM1.TG-Z5NF6-EBVFFCBB46-15B3-A-S	120 °	374 lm	2-SMD No Lead Exposed Pad	White	SMD	1.5 A	4.6 °C/W	0.77 mm	0.03 in	3 V	Surface Mount	1 A	125 lm/W	0.075 in	1.5 mm	1.9 mm	0.059 "	297 lm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting OSLON® Compact PL White 3V 1A 120° 2-SMD, No Lead Exposed Pad
