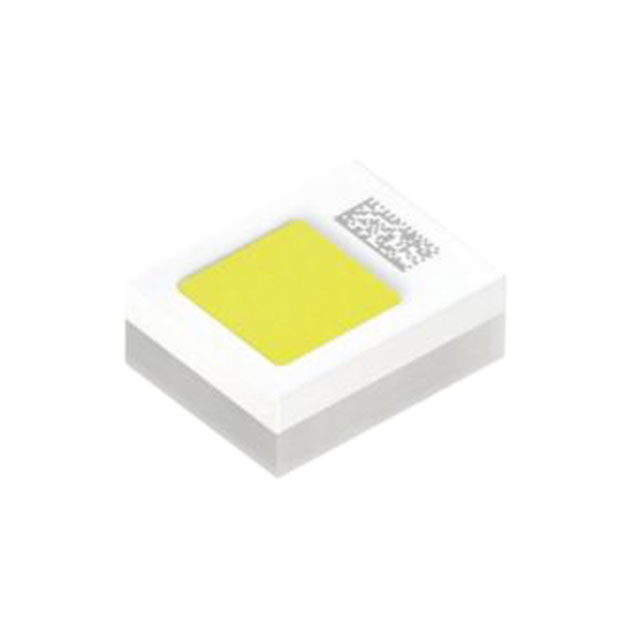

KW CELNM2.TK-S2S8-4L07M0-2686-S
NRNDams-OSRAM USA INC.
LED OSLON WHITE SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KW CELNM2.TK-S2S8-4L07M0-2686-S
NRNDams-OSRAM USA INC.
LED OSLON WHITE SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KW CELNM2.TK-S2S8-4L07M0-2686-S |
|---|---|
| Color | White |
| Current - Max [Max] | 1.5 A |
| Current - Test | 1 A |
| Flux @ 25°C, Current - Test | 433 lm |
| Height - Seated (Max) [Max] | 0.77 mm |
| Height - Seated (Max) [Max] | 0.03 in |
| Lumens/Watt @ Current - Test | 140 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead Exposed Pad |
| Size / Dimension [x] | 0.075 in |
| Size / Dimension [x] | 1.9 mm |
| Size / Dimension [y] | 1.5 mm |
| Size / Dimension [y] | 0.059 " |
| Supplier Device Package | SMD |
| Thermal Resistance of Package [diameter] | 4.6 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.64 | |
| 10 | $ 1.04 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.61 | |||
| Digi-Reel® | 1 | $ 1.64 | ||
| 10 | $ 1.04 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.61 | |||
| Tape & Reel (TR) | 4000 | $ 0.51 | ||
| 8000 | $ 0.50 | |||
| 12000 | $ 0.49 | |||
Description
General part information
KWCELNM Series
LED Lighting OSLON® Compact PL White 3.1V 1A 120° 2-SMD, No Lead Exposed Pad
